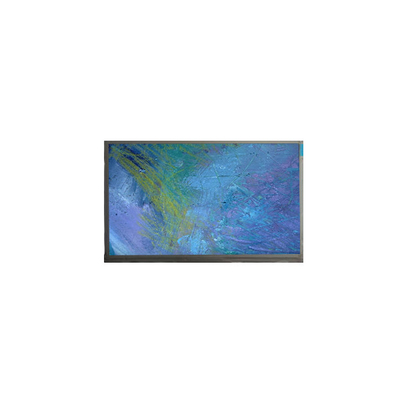

Original in Stock 7.0 inch F07017-01D 800*480 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | CMO |
| Model Number: | F07017-01D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F07017-01D | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL, Q-CUT (Full Cell) | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Outline Size: | 160(W)×102.34(H)×1(D) Mm | Surface: | Without Polarizer |
| Contrast Ratio: | 250:1 (Typ.) (TM) | Application: | Digital Photo Frame、Portable DVD Player |
Product Description
Original in Stock 7.0 inch F07017-01D 800*480 LCD Display Screen
F07017-01D LCD Panel Product details :
| Brand | CMO |
| Model P/N | F07017-01D |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | - |
| Outline Size | 160(W)×102.34(H)×1(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 250:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.8% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 45%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COGSuggest HX8262A x 2 + HX8678A |
| Panel Weight | - |
| Application | Digital Photo Frame,Portable DVD Player |
| Signal Interface | Parallel RGB |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
F07017-01D LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
F07017-01D LCD Panel Shipping and Package :
F07017-01D LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
F07017-01D LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
F07017-01D LCD Panel FAQ :
Q: Can you test the lcd panel F07017-01D before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order F07017-01D ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order F07017-01D ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd F07017-01D ?
A: 90 days .
