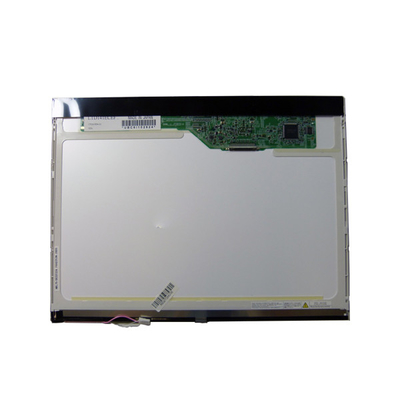

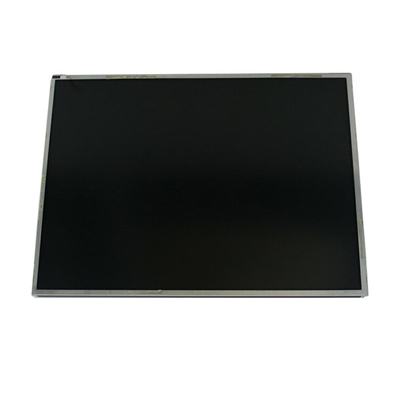

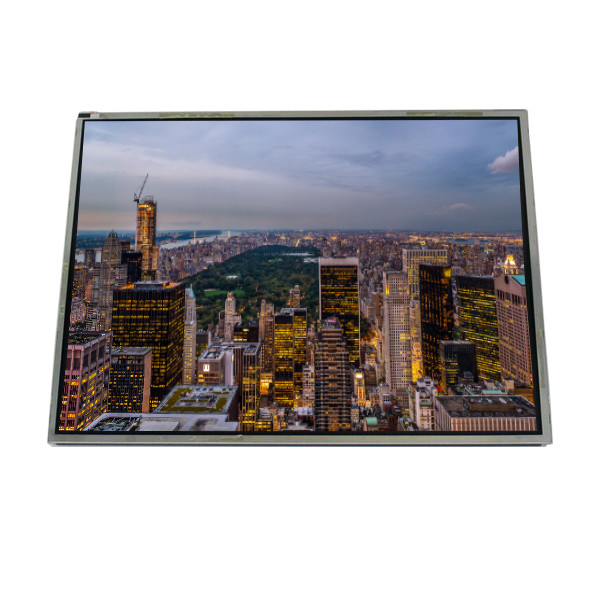

LTD141ECEF 14.1 inch LVDS TFT-LCD Screen Display
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD141ECEF |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD141ECEF | Diagonal Size: | 14.1" |
---|---|---|---|
Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 91PPI |
Active Area: | 285.696(W)×214.272(H) Mm | Display Colors: | 262K 48%NTSC |
Designed For: | Laptop | Frame Rate: | 60Hz |
Mode: | TN, Normally White, Transmissive | Signal Type: | LVDS (1 Ch, 6-bit), 20 Pins Connector |
Product Description
LTD141ECEF 14.1 inch LVDS TFT-LCD Screen Display
LTD141ECEF LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD141ECEF |
Diagonal Size | 14.1" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 91PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 285.696(W)×214.272(H) mm |
Bezel Opening | 289.4(W)×218.0(H) mm |
Outline Size | 299(W)×228(H)×6(D) mm |
Surface | Antiglare, Hard coating (3H) |
Brightness | 220 cd/m² (Typ.) |
Contrast Ratio | 250:1 (Typ.) (TM) |
Viewing Angle | 30/30/10/20 (Min.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | - |
Response Time | 50/50 (Typ.)(Tr/Td) |
Display Colors | 262K 48%NTSC |
Lamp Type | 1 pcsCCFL, 50K hours, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
Application | Laptop |
Signal Interface | LVDS (1 ch, 6-bit), 20 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LTD141ECEF 14.1 inch LVDS TFT-LCD Screen Display |
LTD141ECEF LCD Panel Shipping and Package :
LTD141ECEF LCD Panel FAQ :
Q: Do you accept sample orders for LTD141ECEF ?
A: Of course!sample order is welcome !
Q: How to make payment for LTD141ECEF ?
A: We accept T/T , Paypal , western union .
Q: How long will I receive my goods of LTD141ECEF ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of LTD141ECEF at a very low value ?
A: Yes , we can . pls inform us before shipping .
LTD141ECEF LCD Display Service Hours:
