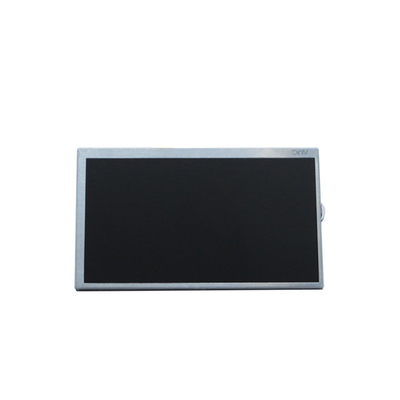

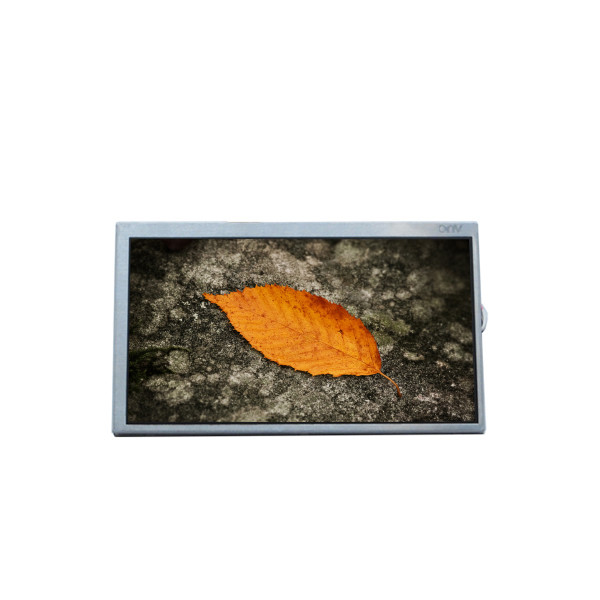

A070VW02 V1 7.0 inch lcd panel replacement
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070VW02 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A070VW02 V1 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Display Colors: | 262K | Lamp Type: | 2S1PWLED, Without Driver |
| Application: | Digital Photo Frame、Portable DVD Player、MP3 PMP | Signal Interface: | TTL (1 Ch, 6-bit), 40 Pins FPC |
Product Description
A070VW02 V1 7.0 inch lcd panel replacement
A070VW02 V1 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A070VW02 V1 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.6(W)×93.64(H) mm |
| Outline Size | 165(W)×106(H)×5.7(D) mm |
| Surface | Antiglare |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 10/18 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 2S1PWLED, Without Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | 130±13g |
| Application | Digital Photo Frame,Portable DVD Player,MP3 PMP |
| Signal Interface | TTL (1 ch, 6-bit), 40 pins FPC |
| Input Voltage | 3.3V (Typ.)(VDD) |
| Environment | Operating Temp.: 0 ~ 60 °C ;Storage Temp.: -20 ~ 65 °C |
A070VW02 V1 LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
A070VW02 V1 LCD Panel Shipping and Package :
A070VW02 V1 LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
A070VW02 V1 LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
A070VW02 V1 LCD Panel FAQ :
Q: How long will I receive my goods A070VW02 V1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of A070VW02 V1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of A070VW02 V1 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
