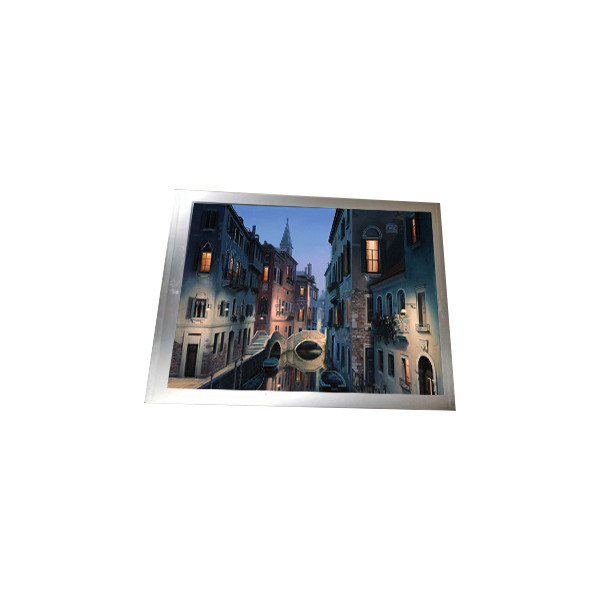

LW800AT9001 8.0 inch LCD Display Panel 800*480 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | ChiHsin |
| Model Number: | LW800AT9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LW800AT9001 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 117PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 173.4(W)×104.04(H) Mm |
| Display Colors: | 262K 45% NTSC | Application: | Digital Photo Frame、Portable DVD Player |
Product Description
LW800AT9001 8.0 inch LCD Display Panel 800*480 LCD Screen Module
LW800AT9001 LCD Panel Product details :
| Brand | ChiHsin |
| Model P/N | LW800AT9001 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 173.4(W)×104.04(H) mm |
| Bezel Opening | 176.4(W)×107.04(H) mm |
| Outline Size | 192.8 × 119.4 × 6 (H×V×D) |
| Surface | - |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 65/65/50/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/15 (Typ.)(Tr/Td) ms |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED [3S9P] , 10K hours , W/O Driver |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | 181g (Typ.) |
| Application | Digital Photo Frame,Portable DVD Player |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| Input Voltage | 3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
LW800AT9001 LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
LW800AT9001 LCD Panel Shipping and Package :
LW800AT9001 LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
LW800AT9001 LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
LW800AT9001 LCD Panel FAQ :
Q: Can I pay my order of LW800AT9001 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of LW800AT9001 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of LW800AT9001 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LW800AT9001 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
