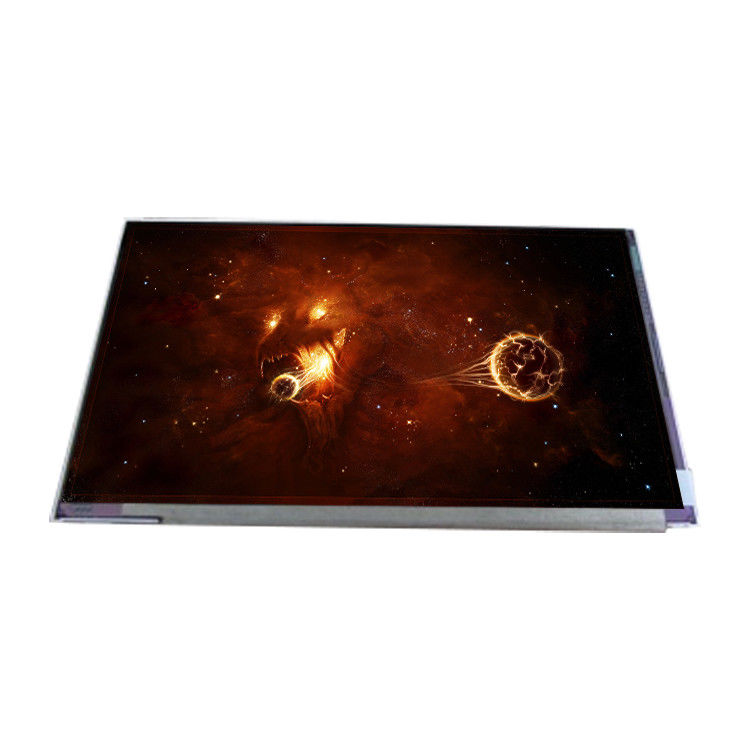

HSD070PFW1-A00 7.0 inch Netbook LCD Screen Panel
Product Details:
Place of Origin: | China |
Brand Name: | HannStar |
Model Number: | HSD070PFW1-A00 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | HSD070PFW1-A00 | Diagonal Size: | 7.0" |
---|---|---|---|
Resolution: | 1024(RGB)×600, WSVGA 169PPI | Active Area: | 153.6(W)×90(H) Mm |
Bezel Opening: | 154.6(W)×91.0(H) Mm | Outline (mm): | 164.05×100.86×4.94 (H×V×D) |
Treatment: | Glare (Haze 0%), Hard Coating, Reflection 1.5% (Max.) | Luminance: | 450 Cd/m² (Typ.) |
Used For: | Pad & Tablet / Netbook PC | Signal Type: | LVDS (1 Ch, 8-bit) , Connector 31 Pins |
Product Description
HSD070PFW1-A00 7.0 inch Netbook LCD Screen Panel
HSD070PFW1-A00 LCD Panel Product details :
HannStar LCD Screen HSD070PFW1-A00 | |
---|---|
Panel Brand | HannStar |
Model P/N | HSD070PFW1-A00 |
Diagonal Size | 7.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1024(RGB)×600, WSVGA 169PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 153.6(W)×90(H) mm |
Bezel Opening | 154.6(W)×91.0(H) mm |
Outline (mm) | 164.05×100.86×4.94 (H×V×D) |
Treatment | Glare (Haze 0%), Hard coating, Reflection 1.5% (Max.) |
Luminance | 450 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/80/70 (Typ.)(CR≥10) |
Response | 4/12 (Typ.)(Tr/Td) ms |
Good View at | 12 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 16.7M 50% NTSC |
Backlight | 3S7P WLED , 10K hours , With LED Driver |
Used for | Pad & Tablet / Netbook PC |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 8-bit) , Connector 31 pins |
Voltage Supply | 3.2/4.2V (Min./Max.) |
Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
HSD070PFW1-A00 7.0 inch Netbook LCD Screen Panel |
HSD070PFW1-A00 LCD Panel Shipping and Package :
HSD070PFW1-A00 LCD Panel FAQ :
Q: How long is the warranty of HSD070PFW1-A00 ?
A: 90days warranty .
Q: How can I trace my order of HannStar HSD070PFW1-A00 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I order HSD070PFW1-A00 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for HSD070PFW1-A00 ?
A: Of course!sample order is welcome !
