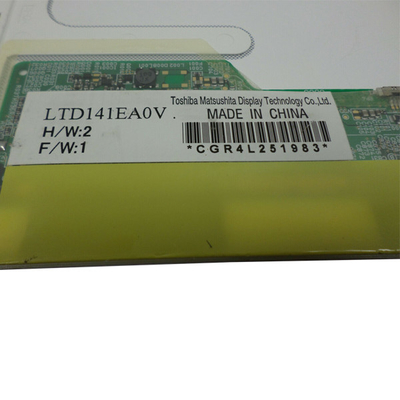

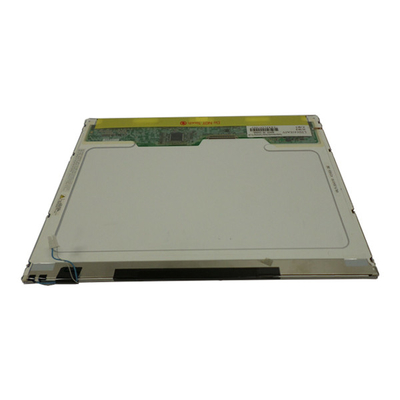

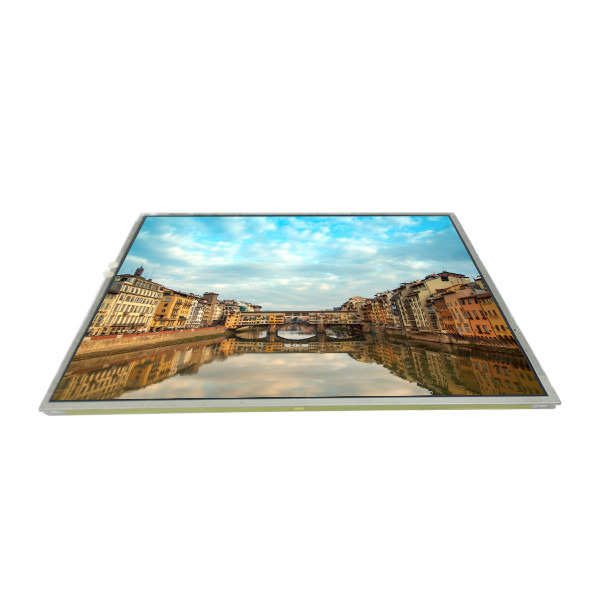

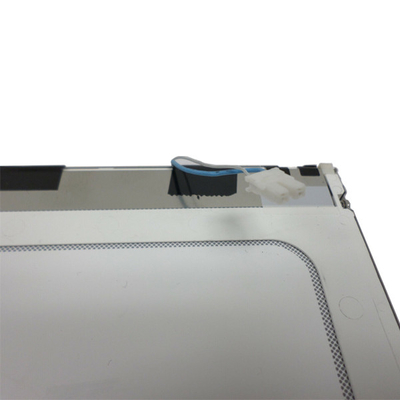

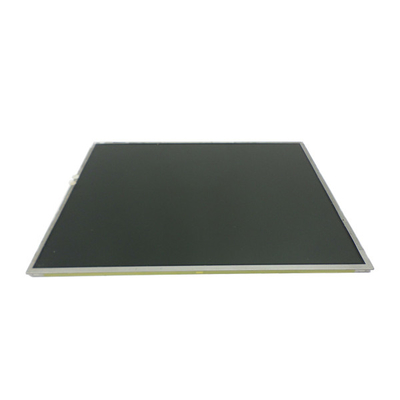

LTD141EA0V 14.1 inch 1024*768 TFT-LCD Screen Display
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD141EA0V |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD141EA0V | Diagonal Size: | 14.1" |
---|---|---|---|
Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 91PPI |
Active Area: | 285.696(W)×214.272(H) Mm | Support Color: | 262K |
Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
LTD141EA0V 14.1 inch 1024*768 TFT-LCD Screen Display
LTD141EA0V LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD141EA0V |
Diagonal Size | 14.1" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 91PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 285.696(W)×214.272(H) mm |
Bezel Opening | 289.4(W)×218.0(H) mm |
Outline Size | 299(W)×228(H)×5.5(D) mm |
Brightness | 160 cd/m² (Typ.) |
Viewing Angle | - |
Best View on | - |
Display Colors | 262K |
Frequency | 60Hz |
Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
Surface | - |
Contrast Ratio | 250:1 (Typ.) (TM) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 50 (Max.)(Tr+Td) |
Lamp Type | 1 pcs CCFL, Without Driver |
Touch Screen | Without |
Application | Laptop |
Signal Interface | LVDS (1 ch, 6-bit), 30 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LTD141EA0V 14.1 inch 1024*768 TFT-LCD Screen Display |
LTD141EA0V LCD Panel Shipping and Package :
LTD141EA0V LCD Panel FAQ :
Q: How long the warranty of lcd LTD141EA0V ?
A: 90 days .
Q: Do you accept the sample order LTD141EA0V ?
A: Yes , sample order is welcome.
Q: Can you test the lcd panel LTD141EA0V before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Can you declared low value of my order LTD141EA0V ?
A: Yes , we can , you can tell us before shipping .
