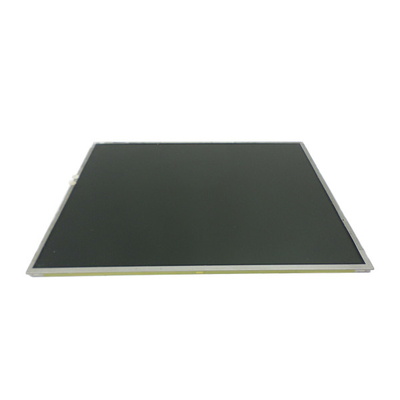

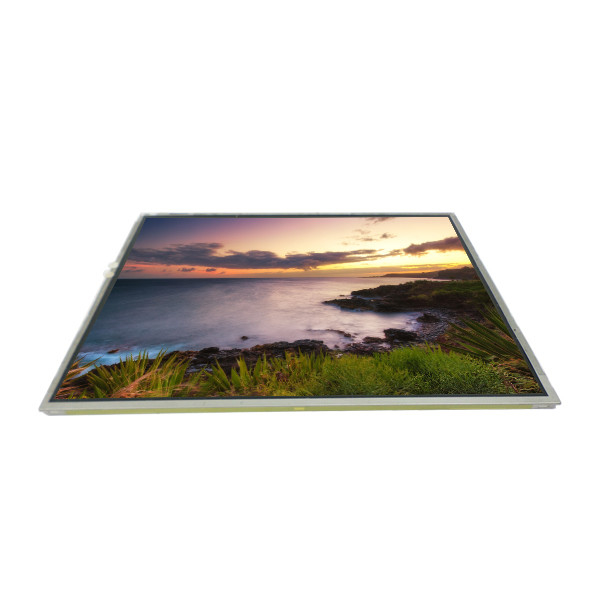

LTD141EA0D 14.1 inch 1024*768 TFT-LCD Screen Display
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD141EA0D |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD141EA0D | Diagonal Size: | 14.1" |
---|---|---|---|
Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1024(RGB)×768, XGA 91PPI |
Active Area: | 285.696(W)×214.272(H) Mm | Support Color: | 262K 48% NTSC |
Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
LTD141EA0D 14.1 inch 1024*768 TFT-LCD Screen Display
LTD141EA0D LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD141EA0D |
Diagonal Size | 14.1" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 91PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 285.696(W)×214.272(H) mm |
Bezel Opening | 288.7(W)×217.3(H) mm |
Outline Dim. | 299(W)×228.6(H)×5.5(D) mm |
Luminance | 170 cd/m² (Typ.) |
View Direction | 6 o'clock |
Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
Support Color | 262K 48% NTSC |
Form Style | Wedge (PCBA Bent, T≥5.2mm) |
Frame Rate | 60Hz |
Treatment | Hard coating (3H), Antireflection |
Contrast Ratio | 200:1 (Min.) (TM) |
Response Time | 35 (Max.)(Tr+Td) |
Operating Mode | TN, Normally White, Transmissive |
Light Source | CCFL [1 pcs], With Inverter |
Designed For | Laptop |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit)30 pins Connector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
LTD141EA0D 14.1 inch 1024*768 TFT-LCD Screen Display |
LTD141EA0D LCD Panel Shipping and Package :
LTD141EA0D LCD Panel FAQ :
Q: Can you declared low value of my order LTD141EA0D ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd LTD141EA0D ?
A: 90 days .
Q: Can you test the lcd panel LTD141EA0D before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order LTD141EA0D ?
A: Yes , sample order is welcome.
