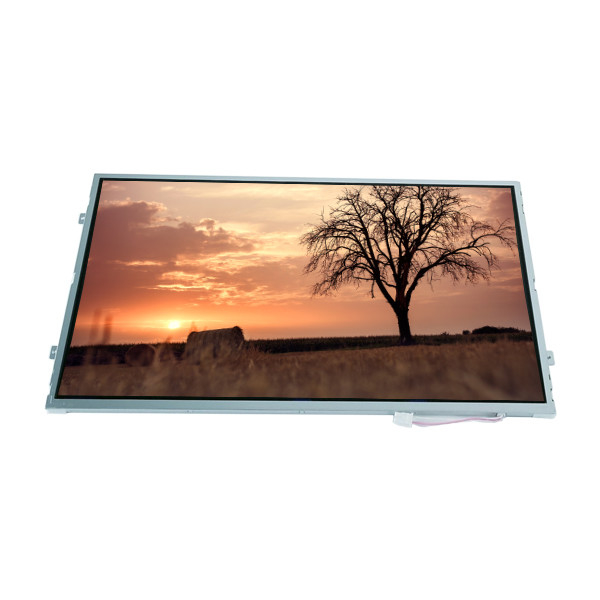

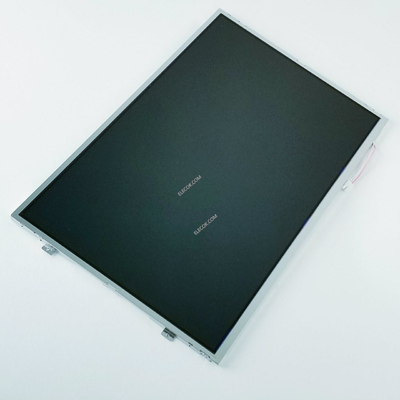

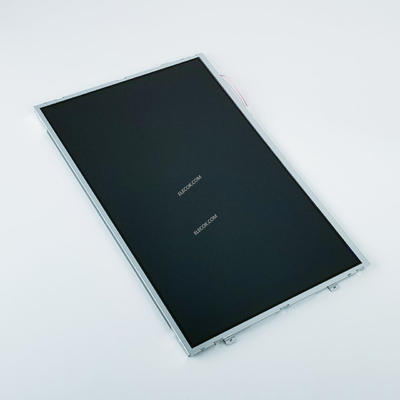

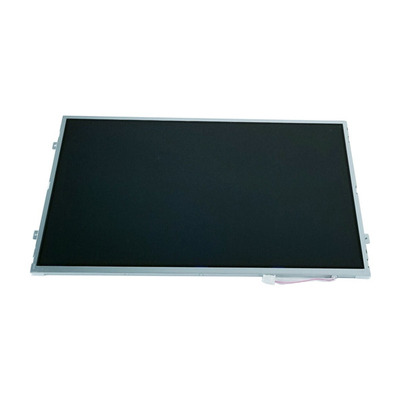

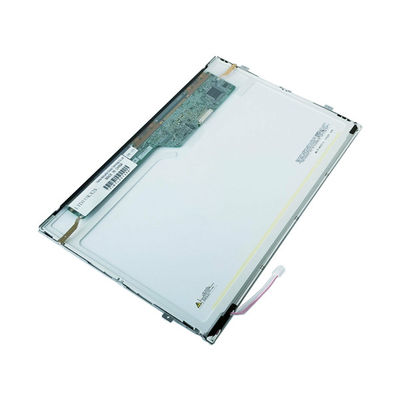

LTD133KX2S 13.3 inch TFT-LCD Screen Display For Laptop
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD133KX2S |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD133KX2S | Diagonal Size: | 13.3" |
---|---|---|---|
Panel Type: | LTPS TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 113PPI |
Active Area: | 286.08(W)×178.8(H) Mm | Support Color: | 262K |
Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
LTD133KX2S 13.3 inch TFT-LCD Screen Display For Laptop
LTD133KX2S LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD133KX2S |
Diagonal Size | 13.3" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 113PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 286.08(W)×178.8(H) mm |
Bezel Opening | 290.9(W)×183.8(H) mm |
Outline (mm) | 300×195×8 (H×V×D) |
Treatment | Glare (Haze 0%), Antireflection |
Luminance | 200 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 60/60/50/60 (Typ.)(CR≥10) |
Response | 50 (Max.)(Tr+Td) ms |
Good View at | 6 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K |
Backlight | 1 pcsCCFL, No Driver |
Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit), Connector20 pins |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LTD133KX2S 13.3 inch TFT-LCD Screen Display For Laptop |
LTD133KX2S LCD Panel Shipping and Package :
LTD133KX2S LCD Panel FAQ :
Q: Do you accept the sample order LTD133KX2S ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order LTD133KX2S ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd LTD133KX2S ?
A: 90 days .
Q: Can you test the lcd panel LTD133KX2S before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
