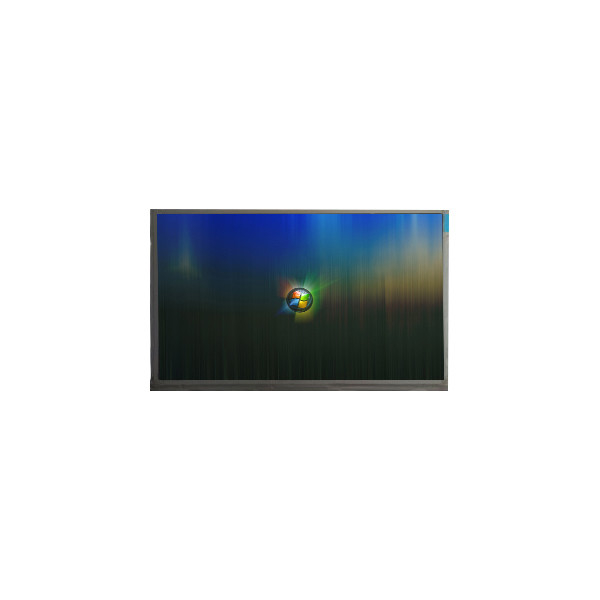

8.0 inch LW800AT6001 800*480 LCD display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | ChiHsin |
| Model Number: | LW800AT6001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LW800AT6001 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , FOG | Resolution: | 800(RGB)×480, WVGA 117PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 173.4(W)×104.04(H) Mm |
| Outline Size: | 181(W)×115.4(H)×1.43(D) Mm | Brightness: | 0 Cd/m² |
| Contrast Ratio: | 300 : 1 (Typ.) (TM) | Application: | Digital Photo Frame ，Portable DVD Player |
Product Description
8.0 inch LW800AT6001 800*480 LCD display panel
LW800AT6001 LCD Panel Product details :
| Brand | ChiHsin |
| Model P/N | LW800AT6001 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOG |
| Resolution | 800(RGB)×480, WVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 173.4(W)×104.04(H) mm |
| Bezel Opening | - |
| Outline Size | 181(W)×115.4(H)×1.43(D) mm |
| Surface | - |
| Brightness | 0 cd/m² |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing Angle | 45/65/65/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/15 (Typ.)(Tr/Td) ms |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | - |
| Display Colors | 262K 50% NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Panel Weight | 63.0g (Typ.) |
| Application | Digital Photo Frame Portable DVD Player |
| Driver IC list | Built-in COG 2 source + 1 gate chips |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| Input Voltage | 3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
LW800AT6001 LCD Display - Extremely Important Information:
Matching Specifications: It is crucial to match the resolution, backlight, and screen size of the replacement screen with your current screen. Any deviation from your current screen specifications may result in incompatibility with your system.
Contact for Assistance: If you are unsure about the specifications of your current screen, please don't hesitate to contact us. Our team will gladly assist you in determining the correct specifications to ensure compatibility with your system.
100% Compatibility Guarantee: Rest assured, you will receive a replacement screen that is 100% compatible with your system. However, please note that the exact brand and part number of the screen you receive may vary based on market availability. Regardless, the replacement screen will meet the necessary specifications for seamless integration with your device.
For further inquiries or assistance regarding screen compatibility, please reach out to our customer support team. We are committed to ensuring that you receive the correct replacement screen for your needs.
LW800AT6001 LCD Panel Shipping and Package :
LW800AT6001 LCD Display SHIPPING :
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
LW800AT6001 LCD Display Warranty:
Warranty Duration: The warranty period is guaranteed for 3 months from the date of purchase.
Product Replacement: In the event of receiving counterfeit or fake products, we offer a replacement with new and genuine items.
However, it is imperative to ensure that the returned product is unused and free from any man-made damages.
Return Shipping Conditions: Customers are required to ship the product back to us using appropriate packaging to prevent any damages during the return transit.
Quality Assurance: Rest assured, each product undergoes thorough testing before shipment. We ensure that every unit is in optimal working condition, with a 100% guarantee of functionality prior to dispatch.
LW800AT6001 LCD Panel FAQ :
Q: Can you tested the LW800AT6001 before shipping ?
A: Of course , our lcd panel LW800AT6001 was Strictly tested before shipping.
Q: How to order LW800AT6001 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel LW800AT6001 received can't work ?
A:LW800AT6001 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
