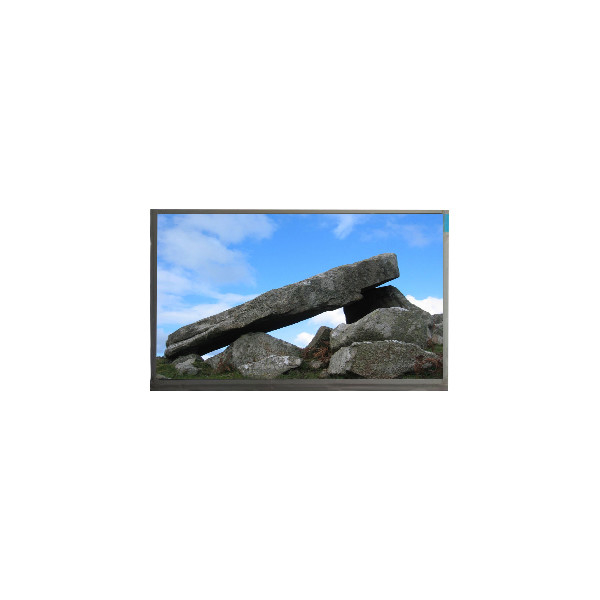

7.0 Inch 800*480 LCD Display LW700AT9005
Product Details:
| Place of Origin: | China |
| Brand Name: | ChiHsin |
| Model Number: | LW700AT9005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LW700AT9005 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Bezel Opening: | 155.3(W)×94.3(H) Mm | Outline Size: | 165(W)×104(H)×5.5(D) Mm |
| Display Colors: | 262K 45% NTSC | Application: | Digital Photo Frame ，Portable DVD Player ，VOIP Phone ，MP3 PMP |
Product Description
7.0 Inch 800*480 LCD Display LW700AT9005
LW700AT9005 Product details :
| Brand | ChiHsin |
| Model P/N | LW700AT9005 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.3(W)×94.3(H) mm |
| Outline Size | 165(W)×104(H)×5.5(D) mm |
| Surface | Antiglare |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/11 (Typ.)(Tr/Td) ms |
| Display Colors | 262K 45% NTSC |
| Lamp Type | 3S5P WLED , 20K hours , No Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 121g |
| Application | Digital Photo Frame ,Portable DVD Player ,VOIP Phone ,MP3 PMP |
| Signal Interface | TTL (1 ch, 6-bit) , 60 pins FPC |
| Input Voltage | 3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
LW700AT9005 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
LW700AT9005 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
LW700AT9005 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
LW700AT9005 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LW700AT9005 FAQ:
Q: How do you ship my goods LW700AT9005 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LW700AT9005 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel LW700AT9005 at a very low value ?
A: Yes , we can . pls inform us before shipping .
LW700AT9005 Shipping and Package :
