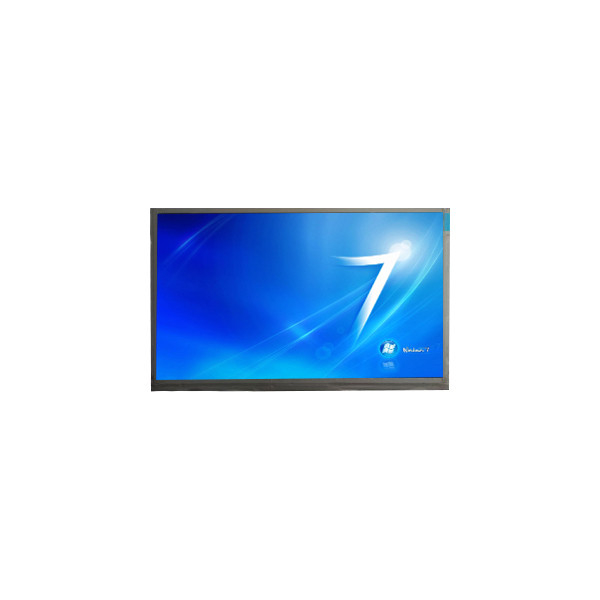

P1210WXF2MA00 12.1 inch 1280*800 TFT LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | P1210WXF2MA00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | P1210WXF2MA00 | Diagonal Size: | 12.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 261.12(W)×163.2(H) Mm |
| Color Depth: | 262K/16.2M 69% NTSC | Backlight: | 11S5P WLED , 50K Hours , Without Driver |
| Used For: | Industrial ，Outdoor High Brightness | Refresh Rate: | 60Hz |
Product Description
P1210WXF2MA00 12.1 inch 1280*800 TFT LCD Screen
P1210WXF2MA00 Product details :
| Brand | TIANMA |
| Model P/N | P1210WXF2MA00 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×800, WXGA 124PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 261.12(W)×163.2(H) mm |
| Bezel Opening | 266.6(W)×168.6(H) mm |
| Outline Dim. | 281.78(W)×183.17(H) ×9.76(D) mm |
| Treatment | Hard coating |
| Luminance | 1500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Support Color | 262K/16.2M 69% NTSC |
| Light Source | 11S5P WLED , 50K hours , Without Driver |
| Weight | TBD |
| Designed For | Industrial ,Outdoor High Brightness |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 2.0G (19.6 m/s²) |
P1210WXF2MA00 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
P1210WXF2MA00 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
P1210WXF2MA00 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
P1210WXF2MA00 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
P1210WXF2MA00 FAQ:
Q: How can I trace my order of P1210WXF2MA00 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of P1210WXF2MA00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of P1210WXF2MA00 via credit card ?
A: Yes!you can use your credit card through your Paypal account
P1210WXF2MA00 Shipping and Package :
