products details

Home > Products >

LCD Screen Display Panel

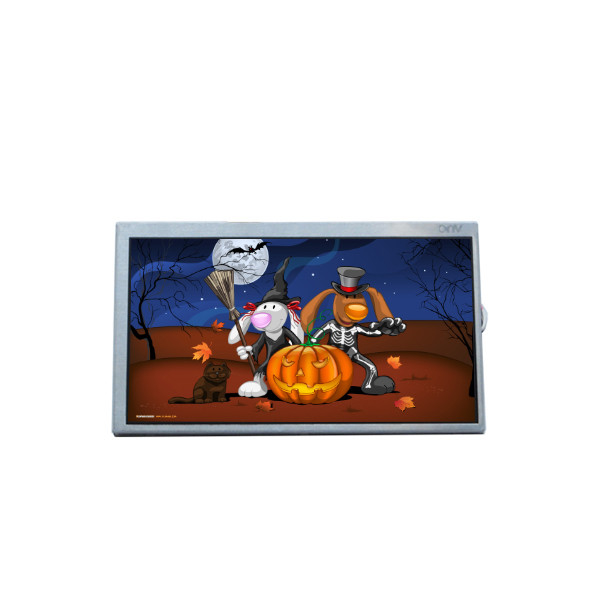

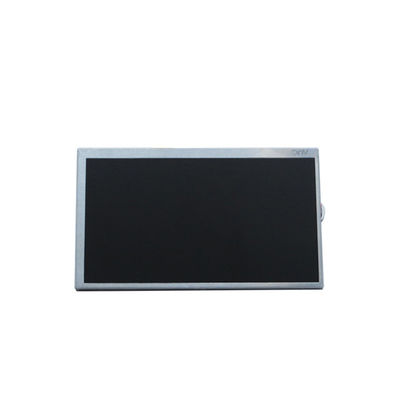

A070FW05 V1 original 7.0 inch tft lcd Screen panel

All Category

Floor Standing Digital Signage

A070FW05 V1 original 7.0 inch tft lcd Screen panel

Brand Name:	AUO
Model Number:	A070FW05 V1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

A070FW05 V1

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)×234 76PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

154.08(W)×86.58(H) Mm

Response:

12/18 (Typ.)(Tr/Td) Ms

Work Mode:

TN, Normally White, Transmissive

Application:

Digital Photo Frame、Portable DVD Player、Video Door Phone

Max. Ratings:

Storage Temp.: -25 ~ 80 °C Operating Temp.: -10 ~ 60 °C

Supply Ability:

100000 Unit/Units per Month

Product Description

A070FW05 V1 original 7.0 inch tft lcd Screen panel

A070FW05 V1 Product details :

Brand	AUO
Model P/N	A070FW05 V1
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×234 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	154.08(W)×86.58(H) mm
Bezel Opening	-
Outline (mm)	166.2×101.2 (H×V×D)
Treatment	-
Luminance	300 cd/m² (Typ.)
Contrast Ratio	300 : 1 (Typ.) (TM)
Viewing Angle	60/60/40/60 (Typ.)(CR≥10)
Response	12/18 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth
Backlight	WLED, 10K hours
Mass	-
Used for	Digital Photo Frame,Portable DVD Player,Video Door Phone
Max. Ratings	Storage Temp.: -25 ~ 80 °C Operating Temp.: -10 ~ 60 °C

A070FW05 V1 Important:

Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.

A070FW05 V1 Payment and Taxes:

1. We recommend Alipay to be safer.

2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.

A070FW05 V1 About transportation:

1: The recipient must be the company's full name or full name.

2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.

3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.

4: If a customs clearance fee is incurred, the buyer bears it.

5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.

A070FW05 V1 Return:

Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.

Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.

A070FW05 V1 FAQ:

Q: How to make payment of A070FW05 V1 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of A070FW05 V1 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can You declare my order of A070FW05 V1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90 days warranty .

A070FW05 V1 Shipping and Package :
A070FW05 V1 original 7.0 inch tft lcd Screen panel 0
