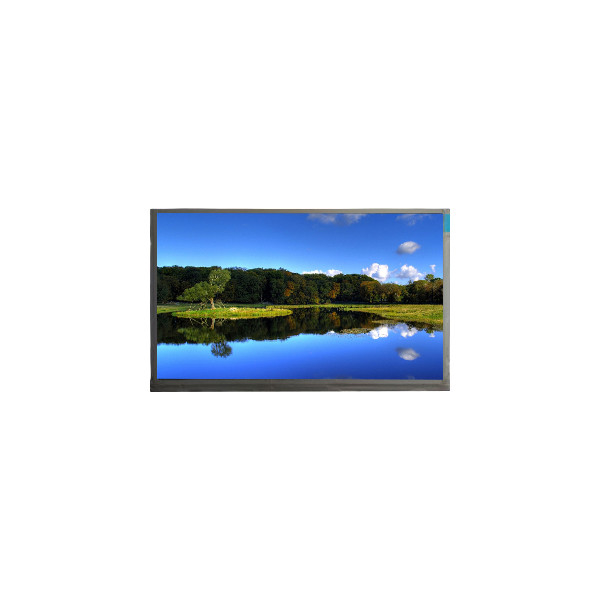

17.3 inch 1920*1080 60Hz P1730FHF1MA10 TFT Lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | P1730FHF1MA10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | P1730FHF1MA10 | Diagonal Size: | 17.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1920(RGB)×1080, FHD 127PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 381.888(W)×214.812(H) Mm |
| Display Colors: | 16.7M 75% NTSC | Lamp Type: | WLED , 50K Hours , W/O Driver |
| Application: | Industrial ，Outdoor High Brightness | Frequency: | 60Hz |
Product Description
17.3 inch 1920*1080 60Hz P1730FHF1MA10 TFT Lcd screen
P1730FHF1MA10 Product details :
| Brand | TIANMA |
| Model P/N | P1730FHF1MA10 |
| Diagonal Size | 17.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 127PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 381.888(W)×214.812(H) mm |
| Bezel Opening | 384.89(W)×217.81(H) mm |
| Outline Dim. | 397.1(W)×234(H)×11.9(D) mm |
| Treatment | Antiglare |
| Luminance | 1200 cd/m² (Typ.) |
| Contrast Ratio | 1700:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Support Color | 16.7M 75% NTSC |
| Light Source | WLED , 50K hours , W/O Driver |
| Shape Style | 781g (Typ.) |
| Designed For | Industrial ,Outdoor High Brightness |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C |
P1730FHF1MA10 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
P1730FHF1MA10 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
P1730FHF1MA10 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
P1730FHF1MA10 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
P1730FHF1MA10 FAQ:
Q: Do you accept sample orders for P1730FHF1MA10 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of P1730FHF1MA10 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for P1730FHF1MA10 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of P1730FHF1MA10 at a very low value ?
A: Yes , we can . pls inform us before shipping .
P1730FHF1MA10 Shipping and Package :
