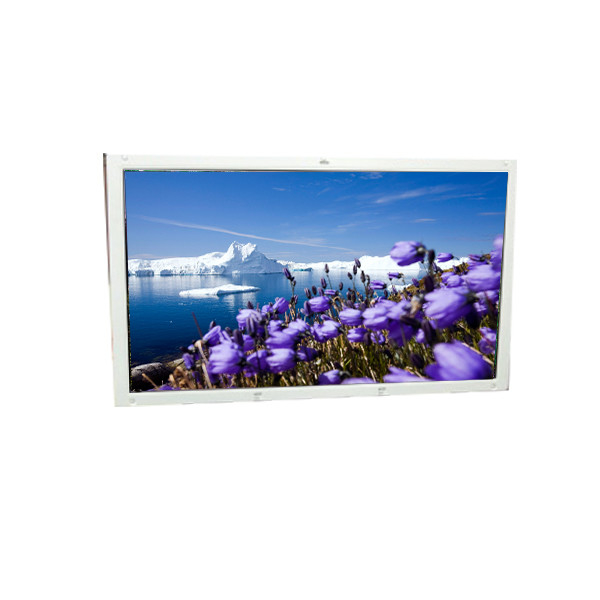

LW700AT9002 7.0 inch LCD Display Panel 800*480 LCD Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | ChiHsin |
| Model Number: | LW700AT9002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LW700AT9002 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Bezel Opening: | 155.3(W)×94.3(H) Mm | Outline Size: | 165(H)×104(V)×5.5(D) Mm |
| Lamp Type: | WLED [3S7P] , 10K Hours , W/O Driver | Application: | Digital Photo Frame ，Portable DVD Player， VOIP Phone ，MP3 PMPr |
Product Description
LW700AT9002 7.0 inch LCD Display Panel 800*480 LCD Screen Module
LW700AT9002 Product details :
| Brand | ChiHsin |
| Model P/N | LW700AT9002 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.3(W)×94.3(H) mm |
| Outline Size | 165(H)×104(V)×5.5(D) mm |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | WLED [3S7P] , 10K hours , W/O Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 110g (Typ.) |
| Application | Digital Photo Frame ,Portable DVD Player, VOIP Phone ,MP3 PMPr |
| Signal Interface | TTL (1 ch, 6-bit) , 50 pins FPC |
| Input Voltage | 3.3/12/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
LW700AT9002 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
LW700AT9002 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
LW700AT9002 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
LW700AT9002 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LW700AT9002 FAQ:
Q: Do you accept sample orders of LW700AT9002 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of LW700AT9002 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of LW700AT9002 ?
A: The order will be shipped within 2-3 working days after received your payment.
