LCD Screen Display Panel
>

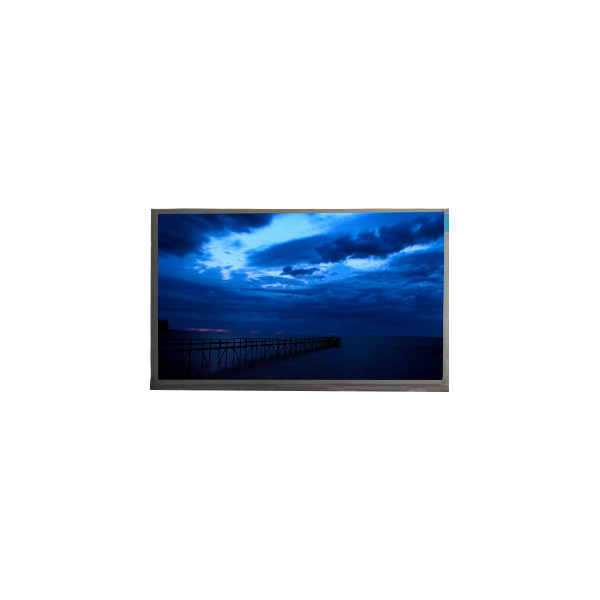

TA070FFHM01-00 7.0 Inch Original 1080*1920 LCD Screen Display

TA070FFHM01-00 7.0 Inch Original 1080*1920 LCD Screen Display

Brand Name: TIANMA
Model Number: TA070FFHM01-00
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model P/N:
TA070FFHM01-00
Diagonal Size:
7.0"
Panel Type:
AM-OLED, OLED , Full Module
Resolution:
1080(RGB)×1920, FHD 257PPI
Pixel Format:
Sub-Pixel Rendering
Active Area:
86.832(W)×154.368(H) Mm
Color Depth:
16.7M 100% DCI-P3
Backlight:
Self
Used For:
Mobile Phone /Gaming
Refresh Rate:
120Hz
Supply Ability:
100000 Unit/Units per Month
Product Description

TA070FFHM01-00 7.0 Inch Original 1080*1920 LCD Screen Display


TA070FFHM01-00 Product details :



Brand TIANMA
Model P/N TA070FFHM01-00
Diagonal Size 7.0"
Panel Type AM-OLED, OLED , Full Module
Resolution 1080(RGB)×1920, FHD 257PPI
Pixel Format Sub-Pixel Rendering
Active Area 86.832(W)×154.368(H) mm
Bezel Opening -
Outline Dim. 88.832×160.368×0.95 (H×V×D)
Treatment -
Luminance 600 cd/m² (Typ.)
Contrast Ratio 100000 : 1 (Min.) (TM)
View Direction Symmetry
Response Time -
Viewing Angle 85/85/85/85 (Min.)(CR≥10)
Operating Mode -
Support Color 16.7M 100% DCI-P3
Light Source self
Weight -
Designed For Mobile Phone /Gaming
Frame Rate 120Hz
Touch Panel On-Cell Touch, I²C
Driver IC list Built-in COG ICNA3520
Interface Type MIPI (4 data lanes) , Connector 39 pins
Power Supply 1.8/4.0V (Typ.)(VDDIO/VBAT)
Environment Storage Temp.: -40 ~ 80 °C Operating Temp.: -20 ~ 70 °C


TA070FFHM01-00 Important:

Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.

TA070FFHM01-00 Payment and Taxes:

1. We recommend Alipay to be safer.

2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.

TA070FFHM01-00 About transportation:


1: The recipient must be the company's full name or full name.

2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.

3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.

4: If a customs clearance fee is incurred, the buyer bears it.

5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.

TA070FFHM01-00 Return:

Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.

Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.

TA070FFHM01-00 FAQ:



Q: How can I trace my order of TA070FFHM01-00 ?

A: we will give you tracking number then you can trace your order from website.



Q: How to make payment of TA070FFHM01-00 ?

A: We accept T/T , Paypal , western union .



Q: Do you accept sample orders of TA070FFHM01-00 ?

A: Of course!sample order is welcome !



Q: Can you give me a discount if I need a large quantity of TA070FFHM01-00 ?

A: Of course!If you make a large order, we will give you a discount.


TA070FFHM01-00 Shipping and Package :
TA070FFHM01-00 7.0 Inch Original 1080*1920 LCD Screen Display 0
