LCD Screen Display Panel
>

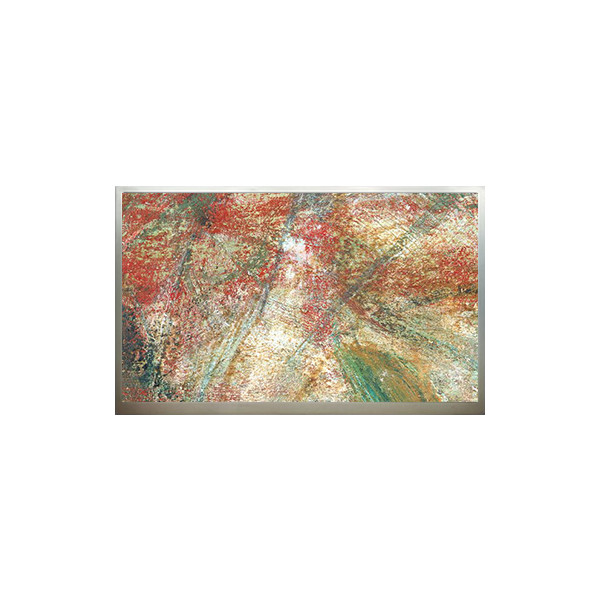

19.0 inch LCD Screen LQ190E1LC08 1280*1024 Lcd Display Panel

19.0 inch LCD Screen LQ190E1LC08 1280*1024 Lcd Display Panel

Brand Name: Sharp
Model Number: LQ190E1LC08
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Model P/N:
LQ190E1LC08
Diagonal Size:
19.0"
Panel Type:
A-Si TFT-LCD, LCM
Resolution:
1280(RGB)×1024, SXGA 86PPI
Pixel Format:
RGB Vertical Stripe
Active Area:
376.32(W)×301.056(H) Mm
Color Depth:
16.7M
Backlight:
WLED , 50K Hours , With LED Driver
Used For:
Gaming
Refresh Rate:
60Hz
Supply Ability:
100000 Unit/Units per Month
Product Description

19.0 inch LCD Screen LQ190E1LC08 1280*1024 Lcd Display Panel


LQ190E1LC08 Product details :



Brand Sharp
Model P/N LQ190E1LC08
Diagonal Size 19.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1280(RGB)×1024, SXGA 86PPI
Pixel Format RGB Vertical Stripe
Active Area 376.32(W)×301.056(H) mm
Bezel Opening 381.2(W)×309(H) mm
Outline Dim. 381.2(W)×309(H) mm
Treatment Clear, Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Min.) (TM)
View Direction -
Response Time 35 (Typ.)(Tr+Td) ms
Viewing Angle 70/70/50/50 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 16.7M
Light Source WLED , 50K hours , With LED Driver
Mass 1.65Kgs (Typ.)
Designed For Gaming
Frame Rate 60Hz
Touch Panel Without
Signal Type LVDS (2 ch, 8-bit) , 31 pins Connector
Voltage Supply 5.0V (Typ.)
Environment Storage Temp.: -25 ~ 75 °C Operating Temp.: 0 ~ 75 °C


LQ190E1LC08 Important:

Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.

LQ190E1LC08 Payment and Taxes:

1. We recommend Alipay to be safer.

2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.

LQ190E1LC08 About transportation:


1: The recipient must be the company's full name or full name.

2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.

3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.

4: If a customs clearance fee is incurred, the buyer bears it.

5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.

LQ190E1LC08 Return:

Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.

Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.

LQ190E1LC08 FAQ:



Q: Can you tested the LQ190E1LC08 before shipping ?

A: Of course , our lcd panel LQ190E1LC08 was Strictly tested before shipping.



Q: How to order LQ190E1LC08 ?

A: We accept T/T , Paypal , western union .



Q: How long the warranty of the lcd LQ190E1LC08 ?

A: 90 days .



Q: What happen if the lcd panel LQ190E1LC08 I received can't work ?

A: LQ190E1LC08 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .


LQ190E1LC08 Shipping and Package :
