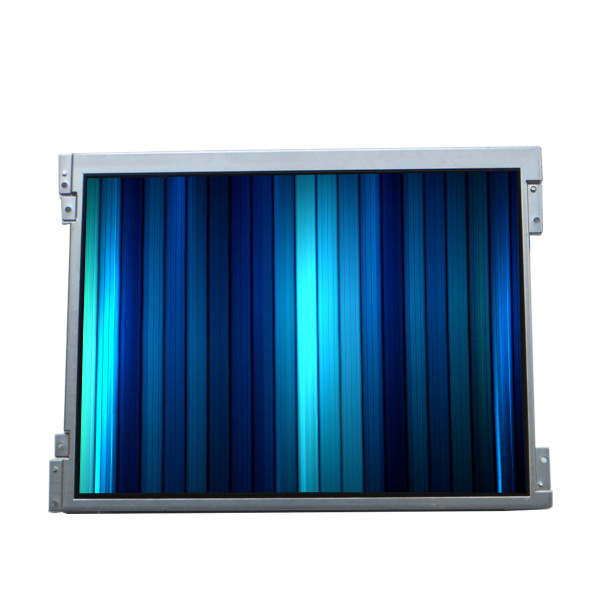

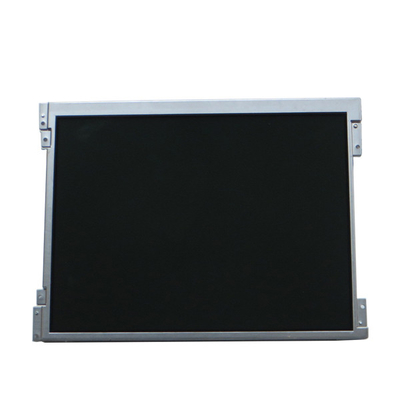

LTD121LA4S 1024*768 12.1 inch TFT LCD Screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTD121LA4S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTD121LA4S | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 105PPI | Active Area: | 245.76(W)×184.32(H) Mm |
| Pixel Format: | RGB Vertical Stripe | Used For: | Laptop |
| Support Color: | 262K | Frame Rate: | 60Hz |
Product Description
LTD121LA4S 1024*768 12.1 inch TFT LCD Screen Panel
LTD121LA4S LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | LTD121LA4S |
| Diagonal Size | 12.1" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 250.4(W)×188.9(H) mm |
| Outline Dim. | 261(H)×199(V)×5.2(D) mm |
| Treatment | - |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 250:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | - |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K |
| Light Source | CCFL [1 pcs], W/O Driver |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTD121LA4S 1024*768 12.1 inch TFT LCD Screen Panel | |
