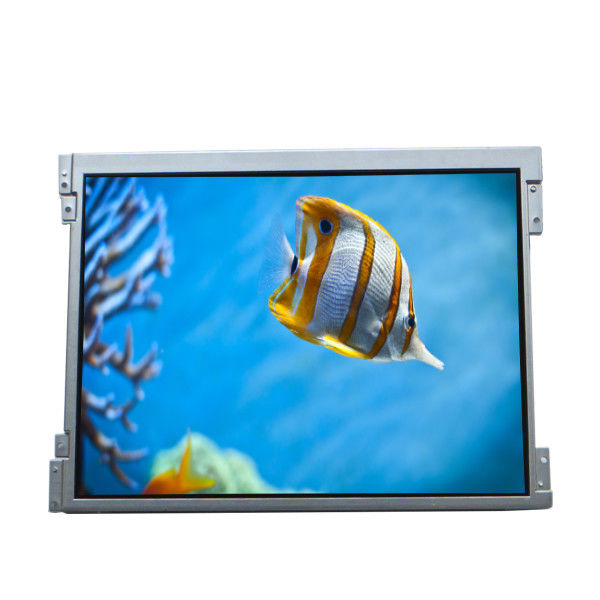

LTD121KM2S 1400*1050 12.1 inch TFT LCD Screen Panel
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD121KM2S |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD121KM2S | Diagonal Size: | 12.1" |
---|---|---|---|
Resolution: | 1400(RGB)×1050, SXGA+ 144PPI | Active Area: | 245.7(W)×184.275(H) Mm |
Pixel Format: | RGB Vertical Stripe | Operating Mode: | TN, Normally White, Transmissive |
Display Colors: | 262K | Signal Interface: | LVDS (2 Ch, 6-bit), 30 PinsConnector |
Product Description
LTD121KM2S 1400*1050 12.1 inch TFT LCD Screen Panel
LTD121KM2S LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD121KM2S |
Diagonal Size | 12.1" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1400(RGB)×1050, SXGA+ 144PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 245.7(W)×184.275(H) mm |
Bezel Opening | 250.4(W)×188.9(H) mm |
Outline Dim. | 269(H)×199(V)×6.8(D) mm |
Treatment | - |
Luminance | 160 cd/m² (Typ.) |
Contrast Ratio | 250:1 (Typ.) (TM) |
View Direction | - |
Response Time | 50/50 (Max.)(Tr+Td) |
Viewing Angle | 50/50/45/50 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K |
Light Source | CCFL [1 pcs], W/O Driver |
Form Style | - |
Designed For | Laptop |
Frame Rate | - |
Touch Panel | Without |
Interface Type | LVDS (2 ch, 6-bit), 30 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
LTD121KM2S 1400*1050 12.1 inch TFT LCD Screen Panel |
LTD121KM2S LCD Panel Shipping and Package :
LTD121KM2S LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: What happen if the lcd panel LTD121KM2S I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
