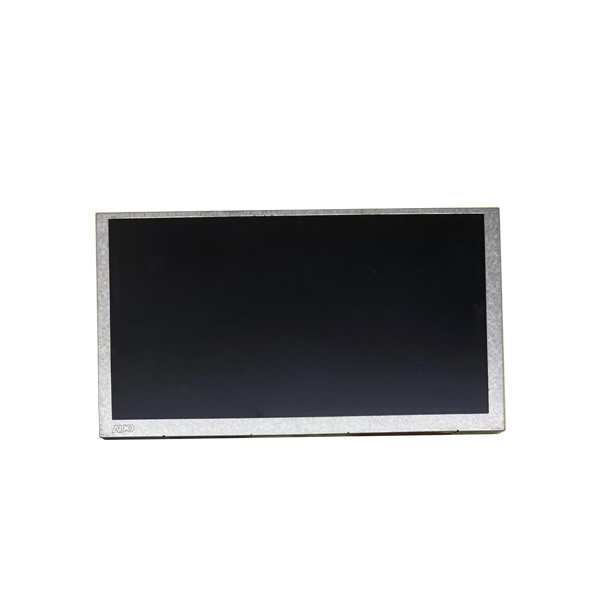

A062EAN02 6.2 inch 1280*720 lcd screen Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A062EAN02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A062EAN02 | Diagonal Size: | 6.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280×720(RGB), WXGA 241PPI |
| Pixel Format: | RGB Horizontal Stripe | Active Area: | 137.088(W)×71.112(H) Mm |
| Display Colors: | 16.7M 71%NTSC | Lamp Type: | WLED [6S2P], W/O Driver |
| Application: | Home Appliance | Frequency: | 60Hz |
Product Description
A062EAN02 6.2 inch 1280*720 lcd screen Screen
A062EAN02 Product details :
| Brand | AUO |
| Model P/N | A062EAN02 |
| Diagonal Size | 6.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280×720(RGB), WXGA 241PPI |
| Pixel Format | RGB Horizontal Stripe |
| Active Area | 137.088(W)×71.112(H) mm |
| Bezel Opening | - |
| Outline Dim. | 147.3(W)×83.5(H) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 380 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 15/12 (Typ.)(Tr/Td) |
| Viewing Angle | - |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.7M 71%NTSC |
| Light Source | WLED [6S2P], W/O Driver |
| Weight | - |
| Designed For | Home Appliance |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | MIPI (4 data lanes), 53 pinsFPC |
| Power Supply | 1.8/5.4/-5.4V (Typ.)(VDD/AVDD+/AVDD-) |
| Environment | Operating Temperature: -25 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C |
A062EAN02 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
A062EAN02 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
A062EAN02 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
A062EAN02 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
A062EAN02 FAQ:
Q: How to make payment of A062EAN02 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of A062EAN02 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of A062EAN02 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
