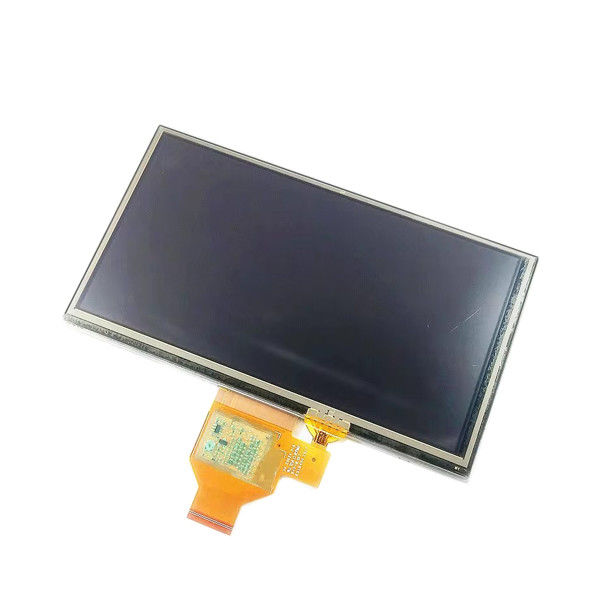

A061VTT01.1 6.1 inch 800*480 lcd display touch screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A061VTT01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | A061VTT01.1 | Diagonal Size: | 6.1" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 153PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 136.2(W)×72(H) Mm |
| Display Colors: | 65K 51%NTSC | Lamp Type: | WLED [7S2P], 10K Hours, W/O Driver |
| Application: | Portable Navigation | Touch Panel: | 4-wire Resistive Touch, F/G |
Product Description
A061VTT01.1 6.1 inch 800*480 lcd display touch screen
A061VTT01.1 Product details :
| Brand | AUO |
| Model P/N | A061VTT01.1 |
| Diagonal Size | 6.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 153PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 136.2(W)×72(H) mm |
| Bezel Opening | 138.2(W)×73.9(H) mm |
| Outline Dim. | 148.3(W)×84.4(H)×5.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 360 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 65K 51%NTSC |
| Light Source | WLED [7S2P], 10K hours, W/O Driver |
| Weight | 140g |
| Designed For | Portable Navigation |
| Frame Rate | 60Hz |
| Touch Panel | 4-wire Resistive Touch, F/G |
| Interface Type | Parallel RGB (1 ch, 6-bit), 50 pinsFPC |
| Power Supply | 3.3/12.0/15.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
A061VTT01.1 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must
confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
A061VTT01.1 Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
A061VTT01.1 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
A061VTT01.1 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
A061VTT01.1 FAQ:
Q: How long will I receive my goods A061VTT01.1?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of A061VTT01.1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods A061VTT01.1?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
A061VTT01.1 Shipping and Package :
