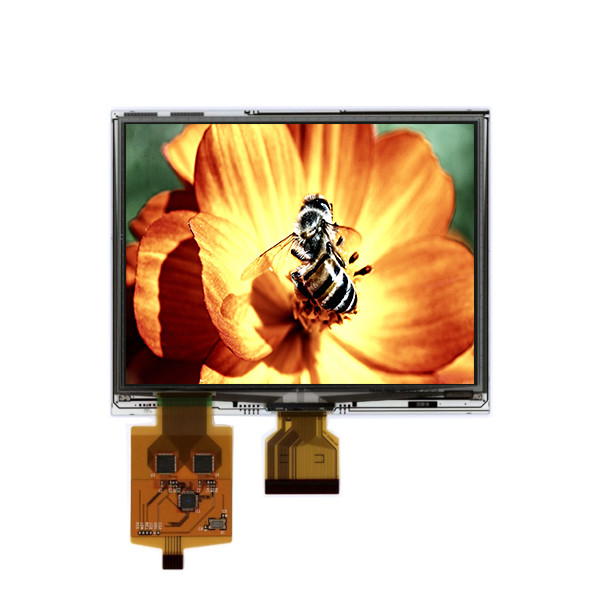

A060SE02 V9 new brand original 6.0 inch lcd display screen

Brand Name:	AUO
Model Number:	A060SE02 V9
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

A060SE02 V9

Diagonal Size:

Panel Type:

EPD, EPD

Resolution:

800×600, SVGA 166PPI

Pixel Format:

Rectangle

Active Area:

122.4(W)×90.6(H) Mm

Support Color:

Grayscale

Lamp Type:

No B/L

Application:

E-Book Reader

Interface Type:

Parallel Data (1ch, 8-bit), 50 PinsFPC

Supply Ability:

100000 Unit/Units per Month

Product Description

A060SE02 V9 new brand original 6.0 inch lcd display screen

A060SE02 V9 LCD Panel Product details :

Brand	AUO
Model P/N	A060SE02 V9
Diagonal Size	6.0"
Panel Type	EPD, EPD
Resolution	800×600, SVGA 166PPI
Pixel Format	Rectangle
Active Area	122.4(W)×90.6(H) mm
Bezel Opening	-
Outline Dim.	130.4(H)×104.6(V) mm
Treatment	Antiglare (Haze 7.5%), Hard coating (3H)
Luminance	-
Contrast Ratio	6:1 (Typ.) (RF)
View Direction	-
Response Time	950 (Typ.)(Ta=+25℃)
Viewing Angle	-
Operating Mode	Reflective
Support Color	Grayscale
Light Source	No B/L
Weight	30.6g
Designed For	E-Book Reader
Frame Rate	-
Touch Panel	Without
Interface Type	Parallel Data (1ch, 8-bit), 50 pinsFPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 40 °C; Storage Temperature: -25 ~ 70 °C

A060SE02 V9 LCD Screen Payment and Taxation:

We offer a variety of convenient payment methods to facilitate your purchase, including PayPal, ALI Sinosure orders, bank transfers, and more.

Please note that products shipped outside of China may be subject to import tariffs, taxes, and fees imposed by the destination country's customs authorities. These additional costs are not included in the price or shipping cost of the product and are solely the responsibility of the consignee.

In the event that an order is not confirmed in a timely manner, it will be automatically cancelled after 7 working days. We encourage prompt confirmation to ensure smooth processing of your order.

A060SE02 V9 LCD Panel Shipping and Package :

A060SE02 V9 LCD Screen Item Not Received:

At our end, we meticulously handle all orders in strict accordance with our commitments. However, it's imperative to note that once the package leaves our facility, its transit is entrusted to third-party courier services. If, due to unforeseen circumstances such as delays stemming from the courier's operational constraints, issues with international or local postal services, or thorough inspections by international customs authorities, your item experiences a delay, we regret to inform you that we cannot be held liable for such delays. Please rest assured that we are committed to assisting you to the best of our abilities within the confines of our control.

A060SE02 V9 LCD Screen Warranty / Returns:

At our establishment, we prioritize your satisfaction and offer a 30-day peace of mind guarantee, allowing for either a refund or exchange should any concerns arise.

In the unfortunate event of receiving a defective or damaged item during transit, we kindly request that you report it to us within 48 hours of receipt.

To initiate a return or exchange, simply ensure that the purchased item(s) are returned within 30 days of receipt, maintaining its original (re-sellable) condition and packaging. Please note that refunds will be issued minus the cost of Postage & Packaging.

Should you encounter any faulty or incorrect item(s), it is imperative to return them within 30 days of receipt. The cost of return postage rests upon the customer, and we advise obtaining proof of postage in the rare event of non-receipt.

Most of our items come with a three-month warranty, covering manufacturing defects exclusively. This warranty does not extend to damage or mishandling caused by the user.

In the event that an item supplied by us develops a fault due to a manufacturing defect, we encourage you to reach out to us via the eBay messaging system for RMA (return merchandise authorization) and further return instructions. Please ensure that the returned item is accompanied by the RMA number, a copy of the invoice, and a clear statement outlining the reason for return.

Please note that refunds or replacements will only be processed upon receipt of the returned item. All returns are diligently processed within 5 working days of receipt at our office.

A060SE02 V9 LCD Panel FAQ :

Q: How can I trace my order of A060SE02 V9 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of A060SE02 V9 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of A060SE02 V9 ?

A: Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .
