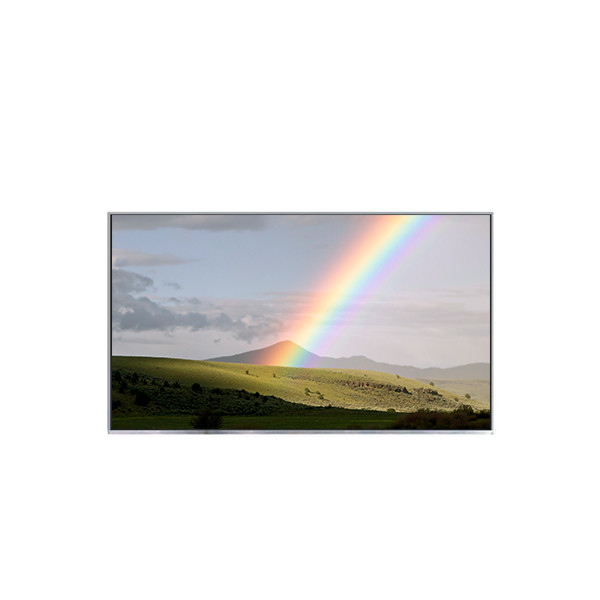

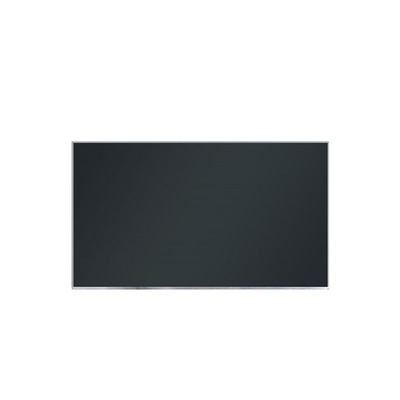

New 15.6 inch B156XTN01.1 1366*768 Resolution LCD Display Panel

Brand Name:	LGAUO
Model Number:	B156XTN01.1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B156XTN01.1

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1366(RGB)×768, WXGA 100PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.232(W)×193.536(H) Mm

Support Color:

262K 45%NTSC

Lamp Type:

WLED, 15K Hours, With LED Driver

Application:

Laptop

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

New 15.6 inch B156XTN01.1 1366*768 Resolution LCD Display Panel

B156XTN01.1 LCD Panel Product details :

Brand	AUO
Model P/N	B156XTN01.1
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)×768, WXGA 100PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.232(W)×193.536(H) mm
Bezel Opening	350.4(W)×196.94(H) mm
Outline Size	359.3(W)×209.5(H)×5.5(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	8 (Typ.)(Tr+Td)
Display Colors	262K 45%NTSC
Lamp Type	WLED, 15K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Shape Style	Wedge (PCBA Bent, T≥5.2mm)
Application	Laptop
Signal Interface	eDP (1 Lane), 30 pinsConnector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

B156XTN01.1 LCD Screen Payment and Taxation:

We offer a variety of convenient payment methods to facilitate your purchase, including PayPal, ALI Sinosure orders, bank transfers, and more.

Please note that products shipped outside of China may be subject to import tariffs, taxes, and fees imposed by the destination country's customs authorities. These additional costs are not included in the price or shipping cost of the product and are solely the responsibility of the consignee.

In the event that an order is not confirmed in a timely manner, it will be automatically cancelled after 7 working days. We encourage prompt confirmation to ensure smooth processing of your order.

B156XTN01.1 LCD Panel Shipping and Package :

B156XTN01.1 LCD Screen Item Not Received:

At our end, we meticulously handle all orders in strict accordance with our commitments. However, it's imperative to note that once the package leaves our facility, its transit is entrusted to third-party courier services. If, due to unforeseen circumstances such as delays stemming from the courier's operational constraints, issues with international or local postal services, or thorough inspections by international customs authorities, your item experiences a delay, we regret to inform you that we cannot be held liable for such delays. Please rest assured that we are committed to assisting you to the best of our abilities within the confines of our control.

B156XTN01.1 LCD Screen Warranty / Returns:

At our establishment, we prioritize your satisfaction and offer a 30-day peace of mind guarantee, allowing for either a refund or exchange should any concerns arise.

In the unfortunate event of receiving a defective or damaged item during transit, we kindly request that you report it to us within 48 hours of receipt.

To initiate a return or exchange, simply ensure that the purchased item(s) are returned within 30 days of receipt, maintaining its original (re-sellable) condition and packaging. Please note that refunds will be issued minus the cost of Postage & Packaging.

Should you encounter any faulty or incorrect item(s), it is imperative to return them within 30 days of receipt. The cost of return postage rests upon the customer, and we advise obtaining proof of postage in the rare event of non-receipt.

Most of our items come with a three-month warranty, covering manufacturing defects exclusively. This warranty does not extend to damage or mishandling caused by the user.

In the event that an item supplied by us develops a fault due to a manufacturing defect, we encourage you to reach out to us via the eBay messaging system for RMA (return merchandise authorization) and further return instructions. Please ensure that the returned item is accompanied by the RMA number, a copy of the invoice, and a clear statement outlining the reason for return.

Please note that refunds or replacements will only be processed upon receipt of the returned item. All returns are diligently processed within 5 working days of receipt at our office.

B156XTN01.1 LCD Panel FAQ :

Q: Do you accept sample orders for B156XTN01.1 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of B156XTN01.1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment for B156XTN01.1 ?

A: We accept T/T , Paypal , western union .

Q: Can You declare my order of B156XTN01.1 at a very low value ?

A: Yes , we can . pls inform us before shipping .
