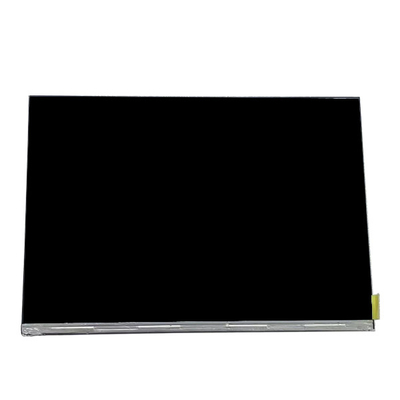

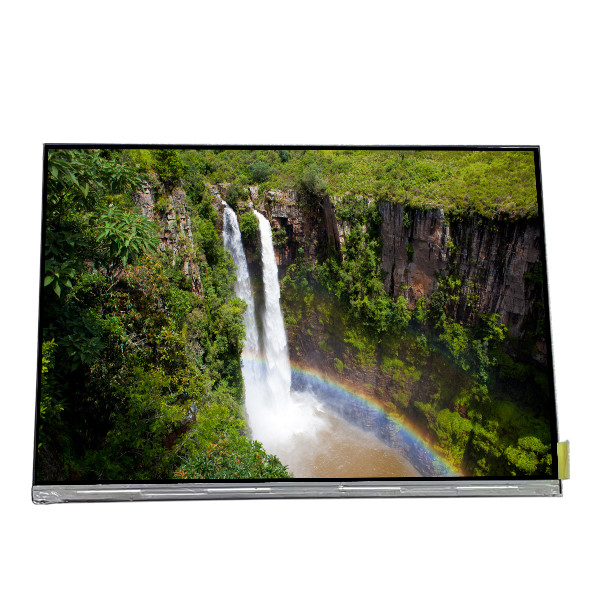

G101EVT05.2 10.1 inch 280*800 Industrial LCD Screen

Brand Name:	AUO
Model Number:	G101EVT05.2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G101EVT05.2

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×800, WXGA 149PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

216.96(W)×135.6(H) Mm

Support Color:

262K/16.2M 47%NTSC

Lamp Type:

WLED, 50K Hours, With LED Driver

Application:

Industrial

Frequency:

Supply Ability:

100000 Unit/Units per Month

Product Description

G101EVT05.2 10.1 inch 280*800 Industrial LCD Screen

G101EVT05.2 LCD Panel Product details :

Brand	AUO
Model P/N	G101EVT05.2
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Bezel Opening	-
Outline Dim.	257.35(W)×175.5(H) mm
Treatment	Hard coating (3H)
Luminance	-
Contrast Ratio	1300:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	MVA, Normally Black, Transmissive
Support Color	262K/16.2M 47%NTSC
Light Source	WLED, 50K hours, With LED Driver
Weight	-
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	PCAP, Air Bonding
Interface Type	LVDS (1 ch, 6/8-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

G101EVT05.2 LCD Screen Payment and Taxation:

We offer a variety of convenient payment methods to facilitate your purchase, including PayPal, ALI Sinosure orders, bank transfers, and more.

Please note that products shipped outside of China may be subject to import tariffs, taxes, and fees imposed by the destination country's customs authorities. These additional costs are not included in the price or shipping cost of the product and are solely the responsibility of the consignee.

In the event that an order is not confirmed in a timely manner, it will be automatically cancelled after 7 working days. We encourage prompt confirmation to ensure smooth processing of your order.

G101EVT05.2 LCD Panel Shipping and Package :

G101EVT05.2 LCD Screen Item Not Received:

At our end, we meticulously handle all orders in strict accordance with our commitments. However, it's imperative to note that once the package leaves our facility, its transit is entrusted to third-party courier services. If, due to unforeseen circumstances such as delays stemming from the courier's operational constraints, issues with international or local postal services, or thorough inspections by international customs authorities, your item experiences a delay, we regret to inform you that we cannot be held liable for such delays. Please rest assured that we are committed to assisting you to the best of our abilities within the confines of our control.

LC320DXJ-SKA4 LCD Screen Warranty / Returns:

At our establishment, we prioritize your satisfaction and offer a 30-day peace of mind guarantee, allowing for either a refund or exchange should any concerns arise.

In the unfortunate event of receiving a defective or damaged item during transit, we kindly request that you report it to us within 48 hours of receipt.

To initiate a return or exchange, simply ensure that the purchased item(s) are returned within 30 days of receipt, maintaining its original (re-sellable) condition and packaging. Please note that refunds will be issued minus the cost of Postage & Packaging.

Should you encounter any faulty or incorrect item(s), it is imperative to return them within 30 days of receipt. The cost of return postage rests upon the customer, and we advise obtaining proof of postage in the rare event of non-receipt.

Most of our items come with a three-month warranty, covering manufacturing defects exclusively. This warranty does not extend to damage or mishandling caused by the user.

In the event that an item supplied by us develops a fault due to a manufacturing defect, we encourage you to reach out to us via the eBay messaging system for RMA (return merchandise authorization) and further return instructions. Please ensure that the returned item is accompanied by the RMA number, a copy of the invoice, and a clear statement outlining the reason for return.

Please note that refunds or replacements will only be processed upon receipt of the returned item. All returns are diligently processed within 5 working days of receipt at our office.

G101EVT05.2 LCD Panel FAQ :

Q: Can I pay my order of G101EVT05.2 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of G101EVT05.2 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of G101EVT05.2 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods G101EVT05.2 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
