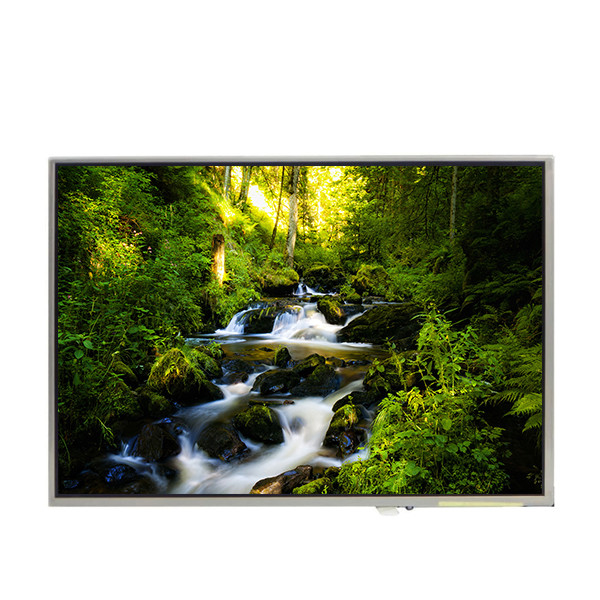

LTD121EW5S 12.1 inch 1280*800 LCD Screen Display
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD121EW5S |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD121EW5S | Diagonal Size: | 12.1" |
---|---|---|---|
Resolution: | 1280(RGB)×800, WXGA 124PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 261.12(W)×163.2(H) Mm | Signal Type: | LVDS (1 Ch, 6-bit) |
Frequency: | 60Hz | Designed For: | Laptop |
Product Description
LTD121EW5S 12.1 inch 1280*800 LCD Screen Display
LTD121EW5S LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD121EW5S |
Diagonal Size | 12.1" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 124PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 261.12(W)×163.2(H) mm |
Bezel Opening | - |
Viewing Angle | - |
Response | - |
Good View at | - |
Work Mode | |
Color Depth | |
Backlight | |
Outline Shape | - |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | - |
Signal Type | LVDS (1 ch, 6-bit) |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LTD121EW5S 12.1 inch 1280*800 LCD Screen Display |
LTD121EW5S LCD Panel Shipping and Package :
LTD121EW5S LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel LTD121EW5S I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order LTD121EW5S ship?
A: The order are shipped within 1-2 working days after received the payment.
