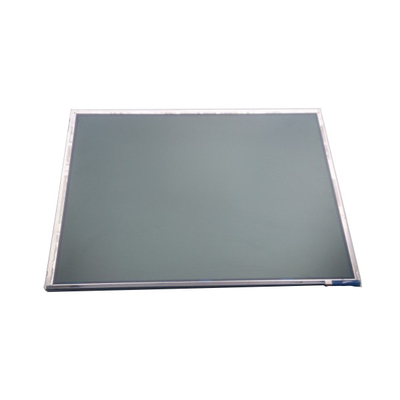

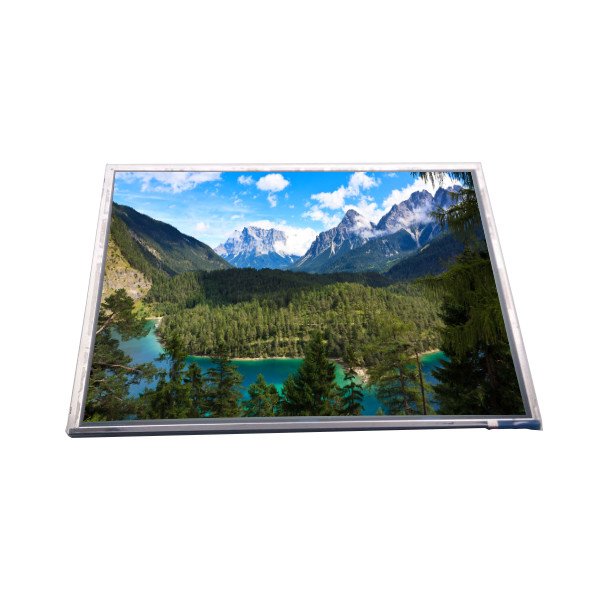

LTD121EC5V 12.1 inch 1024*768 LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTD121EC5V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTD121EC5V | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 105PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 245.76(W)×184.32(H) Mm | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | 262K 49%NTSC | Lamp Type: | 2 Pcs CCFL, No Driver |
| Frequency: | 60Hz | Designed For: | Laptop |
Product Description
LTD121EC5V 12.1 inch 1024*768 LCD Screen Display
LTD121EC5V LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | LTD121EC5V |
| Diagonal Size | 12.1" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 250.5(W)×188.9(H) mm |
| Outline Dim. | 261(H)×199(V)×5(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 180 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Min.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 50 (Max.)(Tr+Td) |
| Viewing Angle | 30/30/10/20 (Min.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 49%NTSC |
| Light Source | CCFL [1 pcs], W/O Driver |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
| LTD121EC5V 12.1 inch 1024*768 LCD Screen Display | |
LTD121EC5V LCD Screen Payment Terms:
Payment Options: YONGS provides a preferred and secure payment method. We accept payments through YONGS, PayPal, and various other payment terms. Additionally, you have the option to pay via credit card through PayPal for added convenience and security.
Import Duties and Taxes: Please note that products may be subject to import duties, taxes, and other charges. These fees are not included in the product price or shipping charges and are the sole responsibility of the recipient.
Order Cancellation Policy: Orders that remain unpaid beyond 7 business days will be automatically cancelled. We kindly ask our customers to complete their payment within this timeframe to ensure timely processing of their orders.
LTD121EC5V LCD Panel Shipping and Package :
LTD121EC5V LCD Screen Product Warranty Information:
Thank you for choosing YONGS products. We are committed to providing high-quality LCD screens to our customers. Please review the following warranty information:
Warranty Period: YONGS offers a warranty period of 120 days against any manufacturer defects. These defects include issues such as fuzziness, image problems, V-lines, or H-lines.
Dead Pixel Policy: Our warranty covers LCD screens with 3-5 dead pixels, in accordance with the ISO 13406-2 norm. If you disagree with this norm, we kindly ask you to refrain from purchasing this product.
We stand behind the quality of our products and aim to ensure your satisfaction with your purchase. Should you encounter any issues within the warranty period, please don't hesitate to contact us for assistance.
Thank you for your trust in YONGS products.
LTD121EC5V LCD Screen Return Policy:
Thank you for choosing our LTD121EC5V LCD screen. We strive to ensure your satisfaction with our products. Please review the following return policy guidelines:
Contact Us for Returns: Prior communication is essential before initiating any return process. Please reach out to us in advance to facilitate a smooth return experience.
Obtain Return Merchandise Authorization (RMA#): A Return Merchandise Authorization number (RMA#) is mandatory for all refund or return requests. Items returned without an RMA number will not be accepted.
Dead on Arrival (DOA) or Shipping Damage: If you receive a DOA or a shipping-damaged item, please notify us within 7 days of receipt for prompt assistance.
Restocking Fee: A 20% restocking fee will apply to all non-defective returns, parts that remain unused, parts that are not needed, and incorrectly ordered parts.
Return Shipping Responsibility: Customers are responsible for covering all return shipping charges under all circumstances.
Non-Refundable Shipping Fee: The shipping fee is non-refundable for all return shipments, including defective returns, unnecessary parts, and incorrectly ordered parts.
Wrong Item Ordered: If you mistakenly order the wrong items, you will be responsible for paying the two-way shipping fee.
Proper Packing Instructions: To ensure the safe return of the LCD screen, please utilize our recommended packing methods such as bubble wrap, rope, sponge form, or similar protective measures. Avoid using envelopes or fragile boxes, as LCD screens are delicate and require secure packaging.
LTD121EC5V LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel LTD121EC5V I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Want to Know more details about this product
