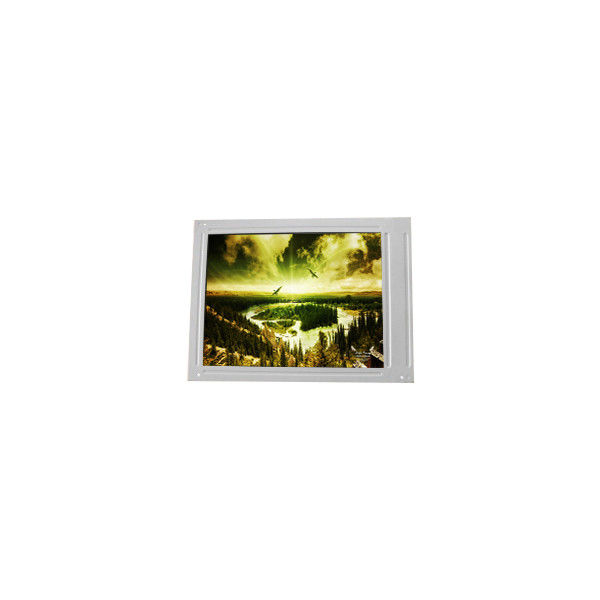

NE180WUM-NY3 18.0 inch 1920*1200 TFT LCD Screen

All Category

Floor Standing Digital Signage

NE180WUM-NY3 18.0 inch 1920*1200 TFT LCD Screen

Brand Name:	BOE
Model Number:	NE180WUM-NY3
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NE180WUM-NY3

Diagonal Size:

18.0"

Panel Type:

Oxide TFT-LCD, LCM

Resolution:

1920(RGB)×1200, WUXGA 125PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

387.763(W)×242.352(H) Mm

Support Color:

16.7M 100% SRGB

Light Source:

WLED [12S6P] , 15K Hours , With LED Driver

Designed For:

Laptop ，Gaming

Frame Rate:

144Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

NE180WUM-NY3 18.0 inch 1920*1200 TFT LCD Screen

NE180WUM-NY3 LCD Panel Product details :

Brand	BOE
Model P/N	NE180WUM-NY3
Diagonal Size	18.0"
Panel Type	Oxide TFT-LCD, LCM
Resolution	1920(RGB)×1200, WUXGA 125PPI
Pixel Format	RGB Vertical Stripe
Active Area	387.763(W)×242.352(H) mm
Bezel Opening	-
Outline Dim.	394.76(H)×253.75(V) ×5.5(D) mm
Treatment	394.76(H)×253.75(V) ×5.5(D) mm
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	8 (Typ.)(Tr+Td), 6 (Typ.)(G to G), 3.8 (Max.)(G to G)(OD)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M 100% sRGB
Light Source	WLED [12S6P] , 15K hours , With LED Driver
Form Style	Slim (PCBA Bent, T≤3.0mm)
Designed For	Laptop ,Gaming
Frame Rate	144Hz
Touch Panel	Without
Interface Type	eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

NE180WUM-NY3 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

NE180WUM-NY3 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

NE180WUM-NY3 LCD Panel Shipping and Package :

NE180WUM-NY3 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of NE180WUM-NY3 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of NE180WUM-NY3 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of NE180WUM-NY3 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .

NE180WUM-NY3 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
