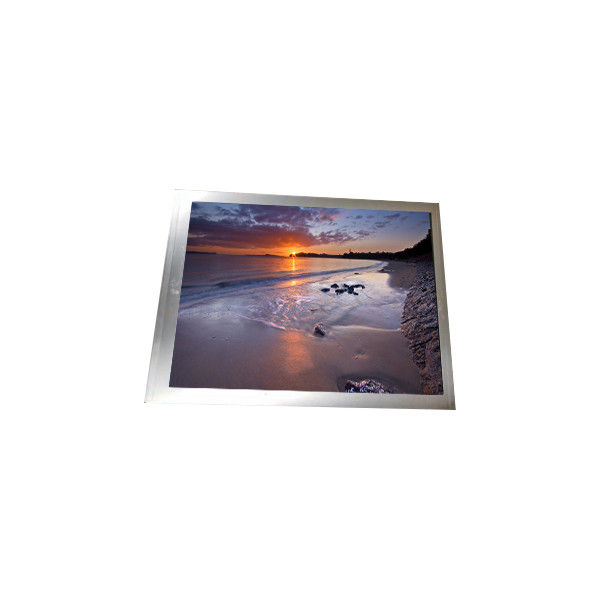

MV238QHB-NF2 23.8 Inch Original 2560*1440 LCD Screen Display

Brand Name:	BOE
Model Number:	MV238QHB-NF2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MV238QHB-NF2

Diagonal Size:

23.8"

Panel Type:

A-Si TFT-LCD, CELL , FOB

Resolution:

2560(RGB)×1440, Quad-HD 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

526.848(W)×296.352(H) Mm

Support Color:

1.07B 99% SRGB

Light Source:

No B/L

Designed For:

Desktop Monitor ，Gaming

Frame Rate:

240Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

MV238QHB-NF2 23.8 Inch Original 2560*1440 LCD Screen Display

MV238QHB-NF2 LCD Panel Product details :

Brand	BOE
Model P/N	MV238QHB-NF2
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	2560(RGB)×1440, Quad-HD 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	526.848(W)×296.352(H) mm
Bezel Opening	-
Outline Dim.	534.84(W)×308.848(H) ×1.32(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	5 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Glass Depth	0.50+0.50 mm
Transmissivity	-
Support Color	1.07B 99% sRGB
Light Source	No B/L
Panel Weight	510±25g
Designed For	Desktop Monitor ,Gaming
Frame Rate	240Hz
Touch Panel	Without
Driver IC	COF Built-in 8 source chips
Signal Interface	eDP (8 Lanes) , 51 pins Connector
Input Voltage	10.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

MV238QHB-NF2 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

MV238QHB-NF2 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

MV238QHB-NF2 LCD Panel Shipping and Package :

MV238QHB-NF2 LCD Panel FAQ :

Q: Do you accept sample orders for MV238QHB-NF2 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of MV238QHB-NF2 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment for MV238QHB-NF2 ?

A: We accept T/T , Paypal , western union .

Q: Can You declare my order of MV238QHB-NF2 at a very low value ?

A: Yes , we can . pls inform us before shipping .
