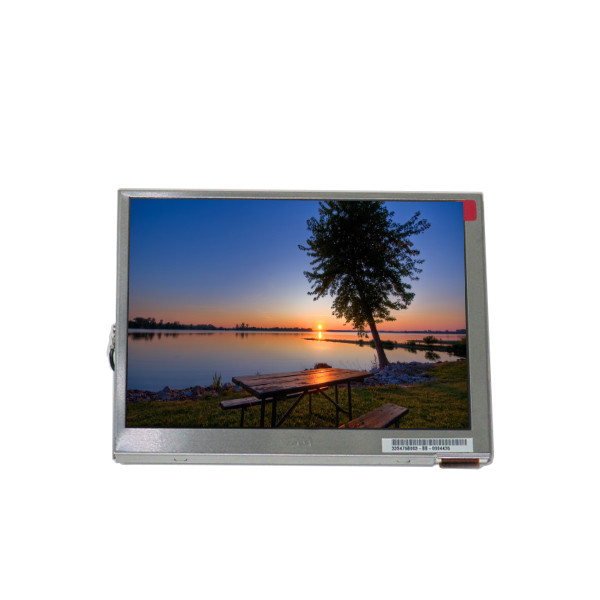

A056DN01 V6 5.6 inch 320*234 lcd panel replacement

Brand Name:	AUO
Model Number:	A056DN01 V6
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

A056DN01 V6

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×234 71PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

113.28(W)×84.708(H) Mm

Color Depth:

Full Color

Backlight:

WLED [2S1P], 10K Hours, W/O Driver

Used For:

Digital Photo Frame、Portable DVD Player、Video Door Phone

Interface Type:

TFT Specific Analog RGB, 26 PinsFPC

Supply Ability:

100000 Unit/Units per Month

Product Description

A056DN01 V6 5.6 inch 320*234 lcd panel replacement

A056DN01 V6 LCD Panel Product details :

Brand	AUO
Model P/N	A056DN01 V6
Diagonal Size	5.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×234 71PPI
Pixel Format	RGB Vertical Stripe
Active Area	113.28(W)×84.708(H) mm
Bezel Opening	115.88(W)×87.30(H) mm
Outline Dim.	126.5(H)×100(V)×5.4(D) mm
Treatment	-
Luminance	300 cd/m² (Typ.)
Contrast Ratio	300:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	12/18 (Typ.)(Tr/Td)
Viewing Angle	65/65/45/65 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	Full color
Light Source	WLED [2S1P], 10K hours, W/O Driver
Weight	TBD
Designed For	Digital Photo Frame,Portable DVD Player,Video Door Phone
Frame Rate	-
Touch Panel	Without
Interface Type	TFT Specific Analog RGB, 26 pinsFPC
Power Supply	3.3/5.25/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temperature: -10 ~ 60 °C; Storage Temperature: -25 ~ 80 °C

A056DN01 V6 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

A056DN01 V6 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

A056DN01 V6 LCD Panel Shipping and Package :

A056DN01 V6 LCD Panel FAQ :

Q: How long is the warranty of A056DN01 V6 ?

A: 90days warranty .

Q: Can you give me a discount if I need a large quantity of A056DN01 V6 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for A056DN01 V6 ?

A: Of course!sample order is welcome !

Q: How long will I receive my goods of A056DN01 V6 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

A056DN01 V6 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
