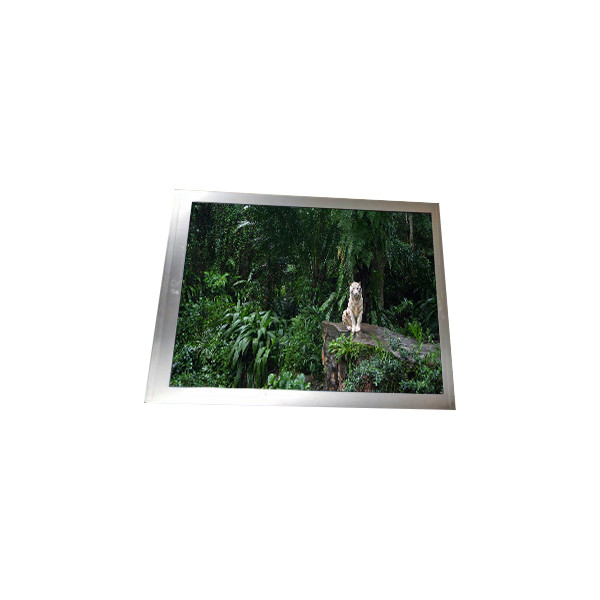

27.0 inch MV270QUM-NY0-A940 4K LCD display panel

Brand Name:	BOE
Model Number:	MV270QUM-NY0-A940
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MV270QUM-NY0-A940

Diagonal Size:

27.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

3840(RGB)×2160, UHD 163PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

596.736(W)×335.664(H) Mm

Color Depth:

1.07B 100% SRGB

Backlight:

No B/L23S4P WLED , 30K Hours , Without Driver

Used For:

Desktop Monitor

Refresh Rate:

120Hz

Supply Ability:

100000 Unit/Units per Month

Product Description

27.0 inch MV270QUM-NY0-A940 4K LCD display panel

MV270QUM-NY0-A940 LCD Panel Product details :

Brand	BOE
Model P/N	MV270QUM-NY0-A940
Diagonal Size	27.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	3840(RGB)×2160, UHD 163PPI
Pixel Format	RGB Vertical Stripe
Active Area	596.736(W)×335.664(H) mm
Bezel Opening	-
Outline Dim.	608.8(W)×352.4(H) ×15.4(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	1.07B 100% sRGB
Light Source	No B/L23S4P WLED , 30K hours , Without Driver
Weight	2.80Kgs (Typ.)
Designed For	Desktop Monitor
Frame Rate	120Hz
Touch Panel	Without
Signal Interface	eDP (8 Lanes) , HBR2 (5.4G/lane) , 51 pins Connector
Input Voltage	10.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

MV270QUM-NY0-A940 LCD Display Warning:

Installation Guide Not Included:

Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.

Compatibility Guarantee:

We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.

Quality Assurance and Testing:

Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.

Precautionary Measures Upon Receipt:

Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.

Safety Protocol During Testing:

Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.

MV270QUM-NY0-A940 LCD Display Helpful Information:

We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:

Matching Size, Resolution, and Backlight:

It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.

If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.

MV270QUM-NY0-A940 LCD Panel Shipping and Package :

MV270QUM-NY0-A940 LCD Panel FAQ :

Q: How do you ship my goods MV270QUM-NY0-A940 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.

Q: How long is the warranty of MV270QUM-NY0-A940 ?

A: 90 days warranty .

Q: How can I trace my order of MV270QUM-NY0-A940 ?

A: we will give you tracking number then you can trace your order form website.

Q: Can you give me a discount if I need a large quantity of MV270QUM-NY0-A940 ?

A: Of course!If you make a large order, we will give you a discount.

MV270QUM-NY0-A940 LCD Display Service Hours:

Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:

Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM

However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.

Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.

Thank you for your trust in our products and services. We look forward to serving you.
