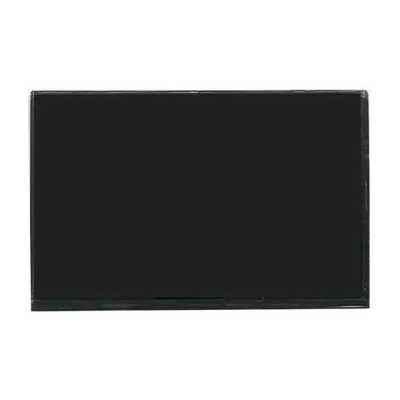

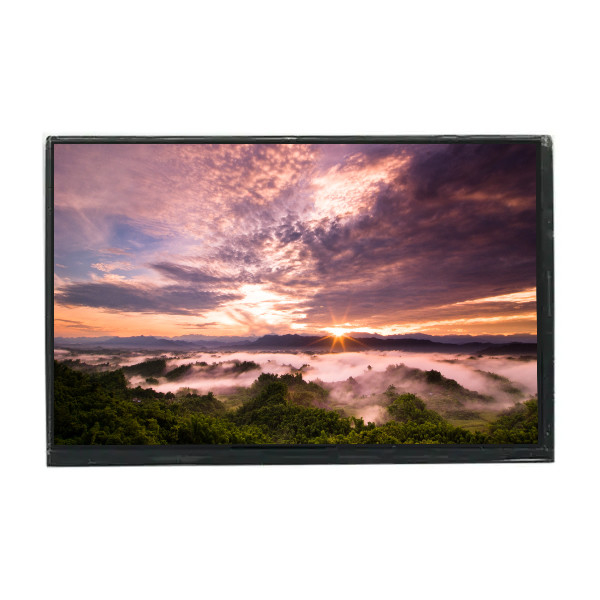

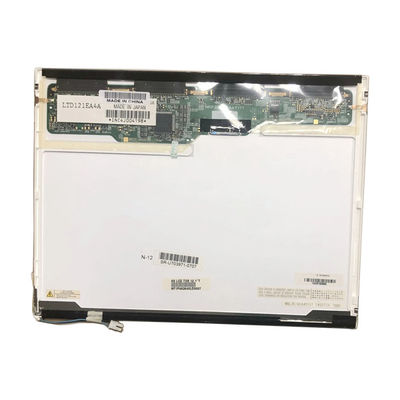

LTD121EA4A 12.1 inch 1024*768 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTD121EA4A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTD121EA4A | Diagonal Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 105PPI | Active Area: | 245.76(W)×184.32(H) Mm |
| Panel Type: | A-Si TFT-LCD, LCM | Pixel Format: | RGB Vertical Stripe |
| Lamp Type: | CCFL [1 Pcs], W/O Driver | Application: | Laptop |
Product Description
LTD121EA4A 12.1 inch 1024*768 LCD Screen Display Panel
LTD121EA4A LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | LTD121EA4A |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 250.4(W)×188.9(H) mm |
| Outline Dim. | 261(H)×199(V)×5.2(D) mm |
| Treatment | Antiglare, Hard coating (2H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Min.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 50 (Max.)(Tr/Td) |
| Viewing Angle | 35/35/10/20 (Min.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45%NTSC |
| Light Source | CCFL [1 pcs], W/O Driver |
| Form Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTD121EA4A 12.1 inch 1024*768 LCD Screen Display Panel | |
LTD121EA4A LCD Display Warning:
Installation Guide Not Included:
Please be aware that the installation guide is not included with this accessory. We want to emphasize that we cannot be held responsible for any damage resulting from improper installation. Prior to bidding, ensure that you possess the necessary expertise for installation. Your understanding in this matter is greatly appreciated.
Compatibility Guarantee:
We guarantee compatibility with your machine for the item you receive. However, please note that we only assure compatibility and cannot guarantee specific features beyond that.
Quality Assurance and Testing:
Rest assured, each screen undergoes thorough testing, ensuring 100% operational functionality before shipment. This includes repairing or replacing old, damaged, cracked, or faulty filters to maintain optimal performance standards.
Precautionary Measures Upon Receipt:
Upon receiving the product, please refrain from removing the protective film or applying adhesive on the back immediately. It is crucial to first test the machine by inserting the new screen and checking for normal sensitivity. This step ensures quality compliance and prevents potential damage to the motherboard and screen.
Safety Protocol During Testing:
Before conducting any tests, disconnect the power to prevent the risk of damaging the motherboard and screen. Failure to do so may result in irreparable damage, for which we cannot be held responsible. Please exercise caution and follow these instructions diligently.
LTD121EA4A LCD Display Helpful Information:
We understand the importance of ensuring compatibility when purchasing an LCD display. To assist you in making the right choice and to avoid any compatibility issues, we offer the following helpful information:
Matching Size, Resolution, and Backlight:
It's crucial to match the size, resolution, and backlight specifications of the product with your existing screen. This ensures seamless integration and optimal performance. Please double-check these specifications before making your purchase.
Contact Us for Assistance:
If you are uncertain about which screen to choose or if you have any questions regarding compatibility, please don't hesitate to reach out to us. You can provide us with details such as your LCD brand, serial number, model, or the model number located on the back of your current screen. Our dedicated technicians are here to assist you in selecting the correct screen for your needs.
LTD121EA4A LCD Panel Shipping and Package :
LTD121EA4A LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: When would you ship,IF I order LTD121EA4A now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
LTD121EA4A LCD Display Service Hours:
Thank you for choosing our product. We are committed to providing exceptional customer service to ensure your satisfaction. Our service hours, based on Beijing time, are as follows:
Monday to Friday: 8:00 AM - 12:00 PM, 1:30 PM - 6:00 PM
However, please note that we understand your needs may arise outside of these hours. Therefore, we have dedicated customer service representatives available 24 hours a day to assist you with any inquiries or issues you may encounter.
Feel free to reach out to us at any time, and we will do our utmost to address your concerns promptly and effectively.
Thank you for your trust in our products and services. We look forward to serving you.
