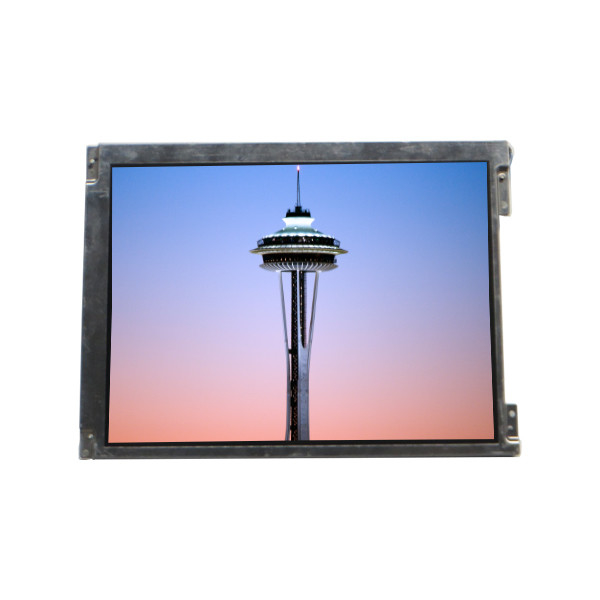

LTD121C32S 12.1 inch LVDS LCD Screen Display Module
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD121C32S |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD121C32S | Diagonal Size: | 12.1" |
---|---|---|---|
Resolution: | 800(RGB)×600, SVGA 82PPI | Active Area: | 246(W)×184.5(H) Mm |
Panel Type: | A-Si TFT-LCD, LCM | Pixel Format: | RGB Vertical Stripe |
Lamp Type: | 2 PcsCCFL, 50K Hours, No Driver | Application: | Industrial |
Product Description
LTD121C32S 12.1 inch LVDS LCD Screen Display Module
LTD121C32S LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD121C32S |
Diagonal Size | 12.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 82PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 246(W)×184.5(H) mm |
Bezel Opening | 249.0(W)×187.5(H) mm |
Outline(mm) | 278.3 × 209× 11 (H×V×D) |
Treatment | - |
Luminance | 250 cd/m² (Typ.) |
Contrast Ratio | 450 : 1 (Typ.) (TM) |
Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) |
Response | 10/25 (Typ.)(Tr/Td) ms |
Good View at | - |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K |
Backlight | 2 pcsCCFL, 50K hours, No Driver |
Mass | 670g (Typ.) |
Used for | Industrial |
Refresh Rate | - |
Touchscreen | Without |
Signal Type | LVDS (1 ch, 6-bit), 20 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 65 °C |
LTD121C32S 12.1 inch LVDS LCD Screen Display Module |
LTD121C32S LCD Panel Shipping and Package :
LTD121C32S LCD Panel FAQ :
Q: When would you ship,IF I order LTD121C32S now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
