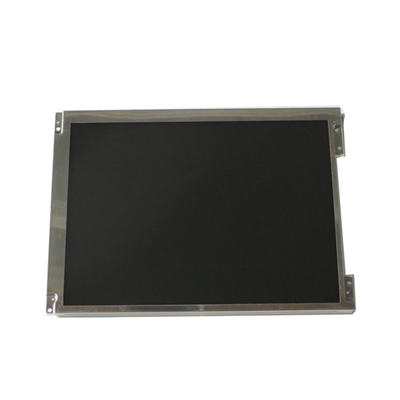

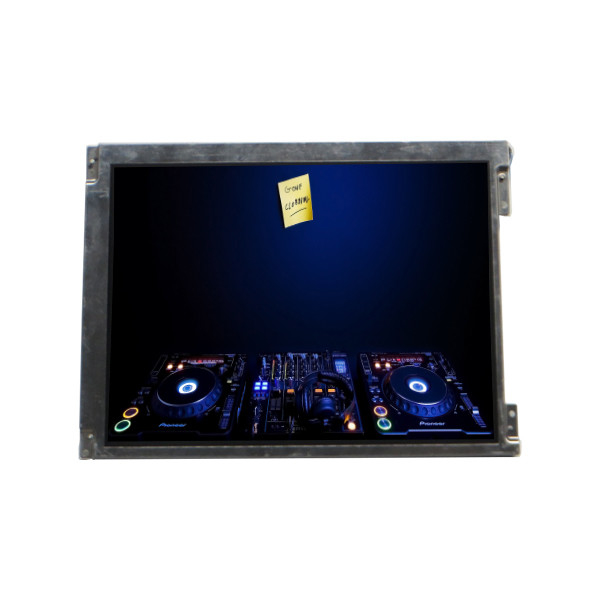

LTD121C30T 12.1 inch 262K LVDS lcd Screen display panel
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD121C30T |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD121C30T | Diagonal Size: | 12.1" |
---|---|---|---|
Resolution: | 800(RGB)×600, SVGA 82PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 246(W)×184.5(H) Mm | Color Depth: | 262K |
Light Source: | CCFL | Designed For: | Industrial |
Product Description
LTD121C30T 12.1 inch 262K LVDS lcd Screen display panel
LTD121C30T LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD121C30T |
Diagonal Size | 12.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 82PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 246(W)×184.5(H) mm |
Bezel Opening | 249.0(W)×187.5(H) mm |
Outline Size | 278.3(W)×209(H)×11(D) mm |
Treatment | - |
Luminance | 250 cd/m² (Typ.) |
Contrast Ratio | 250 : 1 (Typ.) (TM) |
Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) |
Response | 50/50 (Max.)(Tr/Td) ms |
Good View at | - |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K |
Backlight | 2 pcsCCFL, 50K hours, No Driver |
Mass | 750g (Typ.) |
Used for | Industrial |
Refresh Rate | - |
Touchscreen | Without |
Signal Type | Parallel RGB (1 ch, 6-bit), 32 pinsConnector |
Voltage Supply | 3.3V (Typ.)(VDD) |
Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 60 °C |
LTD121C30T 12.1 inch 262K LVDS lcd Screen display panel |
LTD121C30T LCD Panel Shipping and Package :
LTD121C30T LCD Panel FAQ :
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: What happen if the LTD121C30T I receive can't work ?
A: The LTD121C30T will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can You declare my order of lcd panel LTD121C30T at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LTD121C30T ?
A: 90days warranty .
