A052HAN01.0 5.2 inch lcd panel replacement screen for HMD VR AR
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A052HAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A052HAN01.0 | Diagonal Size: | 5.2" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1080(RGB)×3840 769PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 35.64(W)×126.72(H) Mm |
| Support Color: | 16.7M 95%NTSC | Lamp Type: | WLED [7S3P], W/O Driver |
| Application: | HMD VR AR | Interface Type: | MIPI (4 Data Lanes), 50 PinsConnector |
Product Description

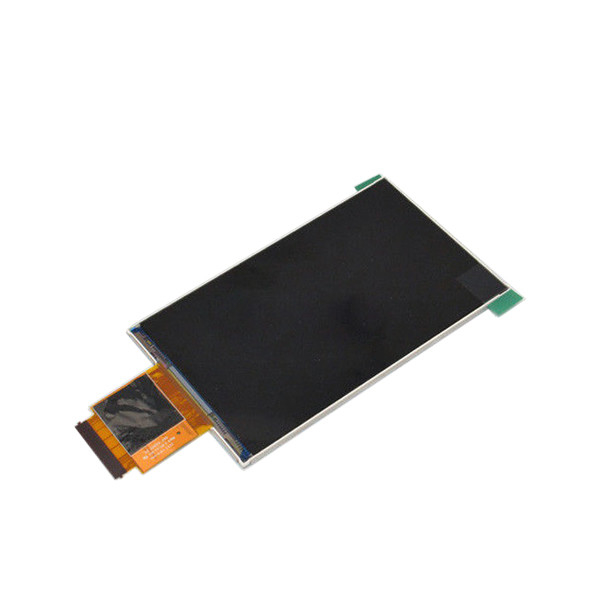

A052HAN01.0 5.2 inch lcd panel replacement screen for HMD VR AR
A052HAN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A052HAN01.0 |
| Diagonal Size | 5.2" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1080(RGB)×3840 769PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 35.64(W)×126.72(H) mm |
| Bezel Opening | - |
| Outline Dim. | 44.92(H)×137.32(V)×3.2(D)mm |
| Treatment | Antireflection |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | - |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 95%NTSC |
| Light Source | WLED [7S3P], W/O Driver |
| Weight | 29.6g (Typ.) |
| Designed For | HMD VR AR |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | MIPI (4 data lanes), 50 pinsConnector |
| Power Supply | 1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN) |
| Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 70 °C |
