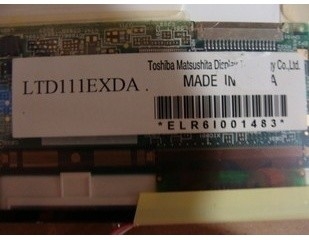

LTD111EXDA 11.1 inch 262K LVDS lcd Screen display panel
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD111EXDA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD111EXDA | Diagonal Size: | 11.1" |
---|---|---|---|
Resolution: | 1366(RGB)×768, WXGA 141PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 245.88(W)×138.24(H) Mm | Color Depth: | 262K |
Backlight: | WLED | Designed For: | Laptop |
Product Description
LTD111EXDA 11.1 inch 262K LVDS lcd Screen display panel
LTD111EXDA LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD111EXDA |
Diagonal Size | 11.1" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 141PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 245.88(W)×138.24(H) mm |
Bezel Opening | 250.9(W)×143.3(H) mm |
Outline Dim. | 260(H)×152(V)×5.9(D) mm |
Treatment | Glare (Haze 0%) |
Luminance | 200 cd/m² (Typ.) |
Contrast Ratio | 600:1 (Typ.) (TM) |
View Direction | - |
Response Time | 50 (Max.)(Tr+Td) |
Viewing Angle | - |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K |
Light Source | CCFL [1 pcs], W/O Driver |
Form Style | - |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 6-bit), 20 pinsConnector |
Power Supply | 3.3V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
LTD111EXDA 11.1 inch 262K LVDS lcd Screen display panel |
LTD111EXDA LCD Panel Shipping and Package :
LTD111EXDA LCD Panel FAQ :
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long is the warranty of LTD111EXDA ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LTD111EXDA ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods of LTD111EXDA ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
