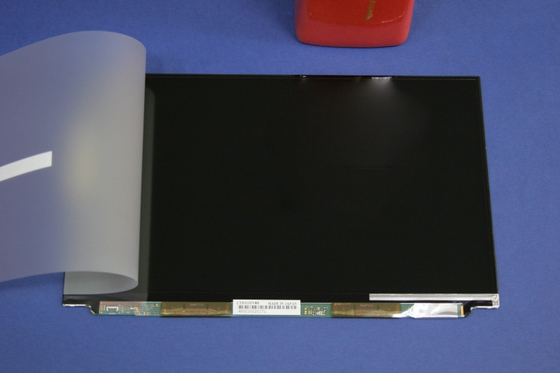

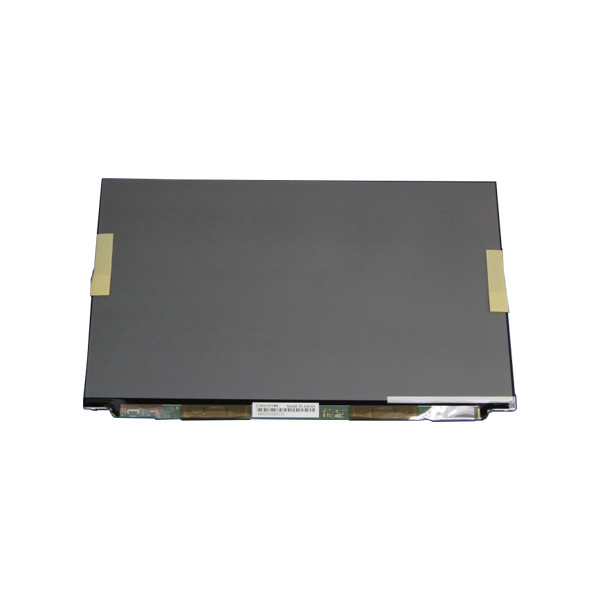

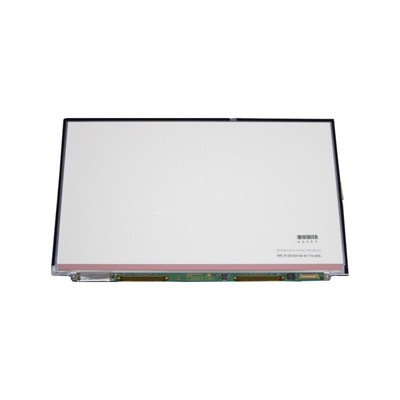

LTD111EV8X 11.1 inch 370 cd/m2 LVDS lcd Screen display panel
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD111EV8X |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD111EV8X | Diagonal Size: | 11.1" |
---|---|---|---|
Resolution: | 1366(RGB)×768, WXGA 141PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 245.88(W)×138.24(H) Mm | Contrast Ratio: | 500:1 (Typ.) (TM) |
Operating Mode: | TN, Normally White, Transmissive | Designed For: | Laptop |
Product Description
LTD111EV8X 11.1 inch 370 cd/m2 LVDS lcd Screen display panel
LTD111EV8X LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD111EV8X |
Diagonal Size | 11.1" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1366(RGB)×768, WXGA 141PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 245.88(W)×138.24(H) mm |
Bezel Opening | - |
Outline Dim. | 254.8(H)×159.45(V)×4.04(D) mm |
Treatment | Antiglare |
Luminance | 370 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | - |
Response Time | 8.5 (Typ.)(Tr/Td) |
Viewing Angle | - |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 16.7M |
Light Source | WLED [8S6P], W/O Driver |
Form Style | - |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | LVDS (1 ch, 8-bit), 30 pinsConnector |
Power Supply | 2.5V (Typ.) |
Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
LTD111EV8X 11.1 inch 370 cd/m2 LVDS lcd Screen display panel |
LTD111EV8X LCD Panel Shipping and Package :
LTD111EV8X LCD Panel FAQ :
Q: How long will I receive my goods of LTD111EV8X ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of LTD111EV8X ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LTD111EV8X ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
