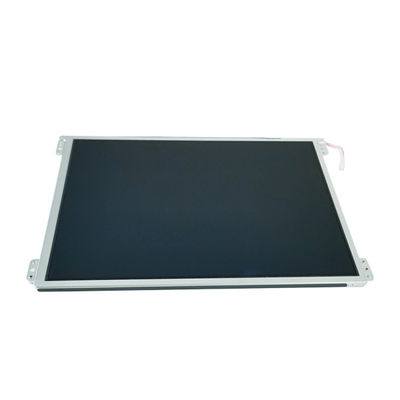

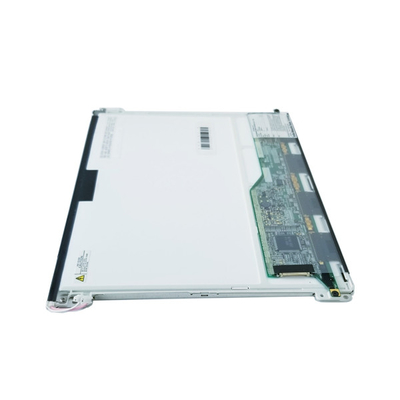

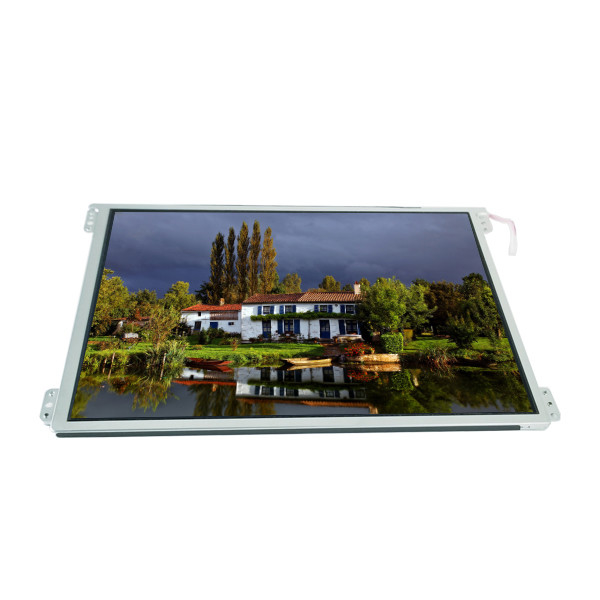

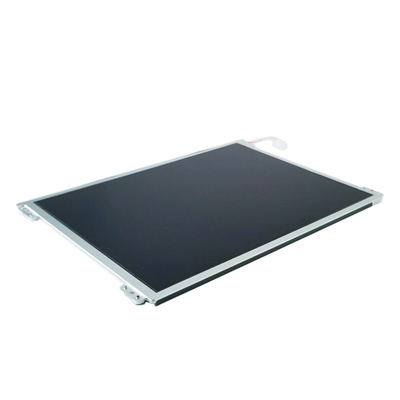

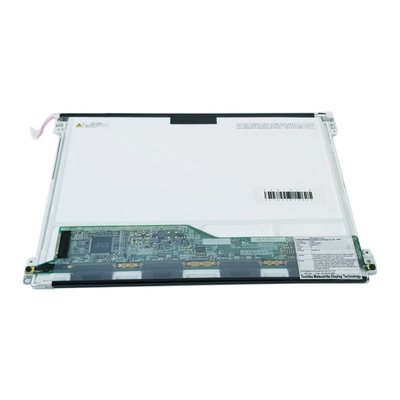

LTD104KA3S 10.4 inch 1024*768 lcd Screen display panel
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD104KA3S |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD104KA3S | Diagonal Size: | 10.4" |
---|---|---|---|
Resolution: | 1024(RGB)×768, XGA 123PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 210.4(W)×157.8(H) Mm | Panel Type: | LTPS TFT-LCD, LCM |
Display Mode: | TN, Normally White, Transmissive | Application: | Pad & Tablet |
Product Description
LTD104KA3S 10.4 inch 1024*768 lcd Screen display panel
LTD104KA3S LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTD104KA3S |
Diagonal Size | 10.4" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 123PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 210.4(W)×157.8(H) mm |
Bezel Opening | 215.0(W)×162.5(H) mm |
Outline Size | 238.6(W)×173.2(H)×6.8(D) mm |
Surface | - |
Brightness | 190 cd/m² (Typ.) |
Contrast Ratio | 250:1 (Typ.) (TM) |
Viewing Angle | 50/50/45/50 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | - |
Response Time | - |
Display Colors | 262K |
Lamp Type | 1 pcsCCFL, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 205g (Typ.) |
Application | Pad & Tablet |
Signal Interface | LVDS (1 ch, 6-bit), 14 pins Connector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LTD104KA3S 10.4 inch 1024*768 lcd Screen display panel |
LTD104KA3S LCD Panel Shipping and Package :
LTD104KA3S LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LTD104KA3S ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of LTD104KA3S ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of LTD104KA3S ?
A: 90days warranty .
