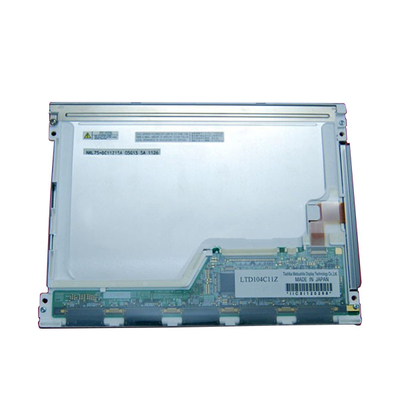

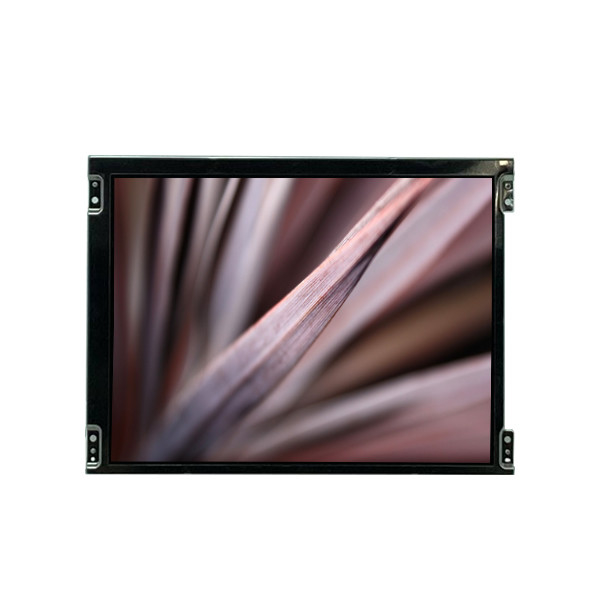

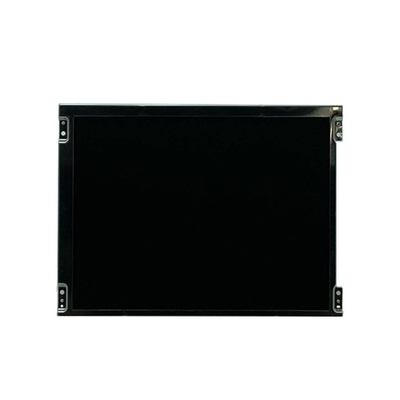

LTD104C11Z 10.4 inch 262K lcd Screen display panel
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD104C11Z |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD104C11Z | Diagonal Size: | 10.4" |
---|---|---|---|
Resolution: | 640(RGB)×480, VGA 76PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 211.2(W)×158.4(H) Mm | Display Colors: | 262K |
Used For: | Industrial | Display Mode: | TN, Normally White, Transmissive |
Product Description
LTD104C11Z 10.4 inch 262K lcd Screen display panel
LTD104C11Z LCD Panel Product details :
Brand | Toshiba Mobile Display |
Model P/N | LTD104C11Z |
Diagonal Size | 10.4" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 640(RGB)×480, VGA 76PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 211.2(W)×158.4(H) mm |
Bezel Opening | 214.6(W)×161.8(H) mm |
Outline Dim. | 238.5(H)×177.5(V)×12(D) mm |
Treatment | Hard coating (3H) |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | 6 o'clock |
Response Time | 10/20 (Typ.)(Tr/Td) |
Viewing Angle | 50/70/70/70 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K 50%NTSC |
Light Source | CCFL [2 pcs], 50K hours, W/O Driver |
Weight | 500±50g |
Designed For | Industrial |
Frame Rate | 60Hz |
Touch Panel | Without |
Interface Type | Parallel RGB (1 ch, 6-bit), 32 pinsConnector |
Power Supply | 3.3/5.0V (Typ.)(VDD) |
Environment | Operating Temperature: -10 ~ 65 °C; Storage Temperature: -20 ~ 80 °C |
LTD104C11Z 10.4 inch 262K lcd Screen display panel |
LTD104C11Z LCD Panel Shipping and Package :
LTD104C11Z LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of LTD104C11Z ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LTD104C11Z to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LTD104C11Z via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How to make payment of LTD104C11Z ?
A: We accept T/T , Paypal , western union .
