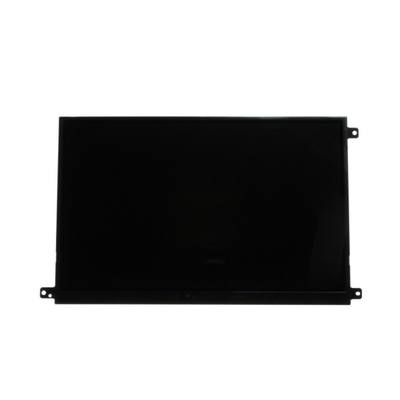

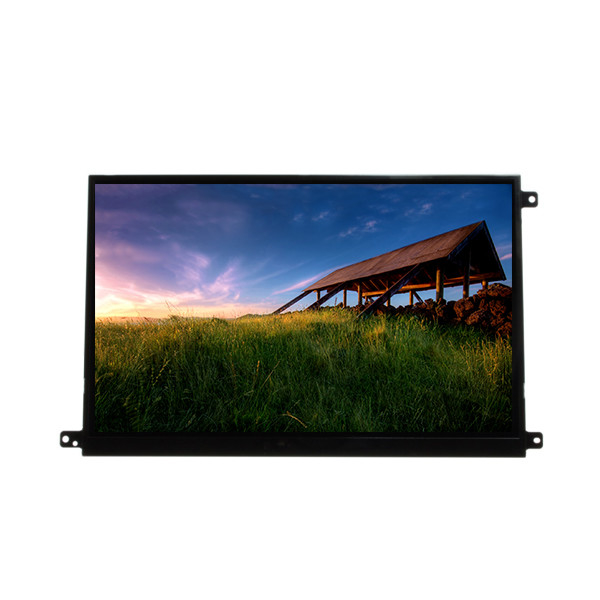

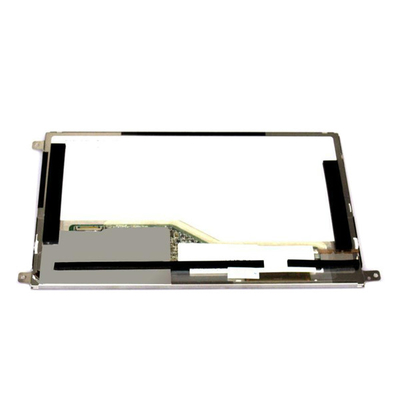

LTD089EXWF 8.9 inch 262K lcd display panel For Laptop
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTD089EXWF |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTD089EXWF | Diagonal Size: | 8.9" |
---|---|---|---|
Resolution: | 1280(RGB)×768, WXGA 167PPI | Pixel Format: | RGB Vertical Stripe |
Active Area: | 193.92(W)×116.352(H) Mm | Display Colors: | 262K |
Used For: | Laptop | Signal Interface: | LVDS (1 Ch, 6-bit), 30 PinsConnector |
Product Description
LTD089EXWF 8.9 inch 262K lcd display panel For Laptop
LTD089EXWF LCD Panel Product details :
Brand | Toshiba Mobile Display |
Model P/N | LTD089EXWF |
Diagonal Size | 8.9" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1280(RGB)×768, WXGA 167PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 193.92(W)×116.352(H) mm |
Bezel Opening | - |
Outline Size | 224(W)×133(H)×5.15(D) mm |
Brightness | 225 cd/m² (Typ.) |
Viewing Angle | - |
Best View on | - |
Display Colors | 262K |
Frequency | 60Hz |
Shape Style | - |
Surface | Glare (Haze 0%) |
Contrast Ratio | 140:1 (Typ.) (TM) |
Display Mode | TN, Normally White, Transflective |
Response Time | 80(Max.)(Tr+Td) |
Lamp Type | 7S6P WLED, Without Driver |
Touch Screen | Without |
Application | Laptop |
Signal Interface | LVDS (1 ch, 6-bit), 30 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
LTD089EXWF 8.9 inch 262K lcd display panel For Laptop |
LTD089EXWF LCD Panel Shipping and Package :
LTD089EXWF LCD Panel FAQ :
Q: Can You declare my order of LTD089EXWF to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LTD089EXWF via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How to make payment of LTD089EXWF ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LTD089EXWF ?
A: Of course!If you make a large order, we will give you a discount.
