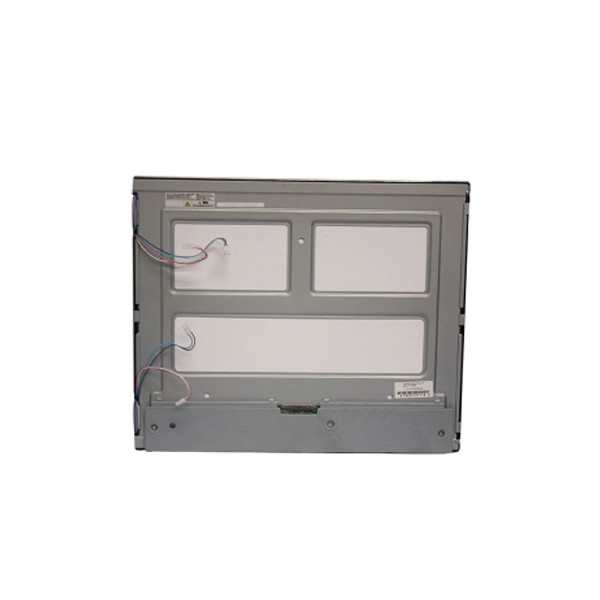

LTA170D200F-11 17.0 inch 350 cd/m2 lcd display panel LCD Module
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTA170D200F-11 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTA170D200F-11 | Diagonal Size: | 17.0" |
---|---|---|---|
Resolution: | 1280(RGB)×1024, SXGA 96PPI | Pixel Format: | RGB Vertical Stripe |
Luminance: | 350 Cd/m² (Typ.) | Response Time: | 6/10 (Typ.)(Tr/Td) |
Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) | Work Mode: | TN, Normally White, Transmissive |
Used For: | Industrial |
Product Description
LTA170D200F-11 17.0 inch 350 cd/m2 lcd display panel LCD Module
LTA170D200F-11 LCD Panel Product details :
Brand | TOSHIBA |
Model P/N | LTA170D200F-11 |
Diagonal Size | 17.0" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1280(RGB)×1024, SXGA 96PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 337.92(W)×270.336(H) mm |
Bezel Opening | 339.92(W)×272.336(H) mm |
Outline(mm) | 358.5(W)×296.5(H)×20(D) |
Luminance | 350 (Typ.)(cd/m²) |
Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
Good View at | - |
Color Depth | 16.7M |
Mass | 1.90Kgs (Typ.) |
Refresh Rate | 60Hz |
Treatment | Antiglare |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Work Mode | TN, Normally White, Transmissive |
Response | 6/10 (Typ.)(Tr/Td) ms |
Backlight | 4 pcs CCFL , 10K hours , No Driver |
Used for | Industrial |
Touchscreen | Without |
Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
Voltage Supply | 5.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
LTA170D200F-11 17.0 inch 350 cd/m2 lcd display panel LCD Module |
LTA170D200F-11 LCD Panel Shipping and Package :
LTA170D200F-11 LCD Panel FAQ :
Q: How to make payment of LTA170D200F-11 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LTA170D200F-11 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LTA170D200F-11 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of LTA170D200F-11 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
