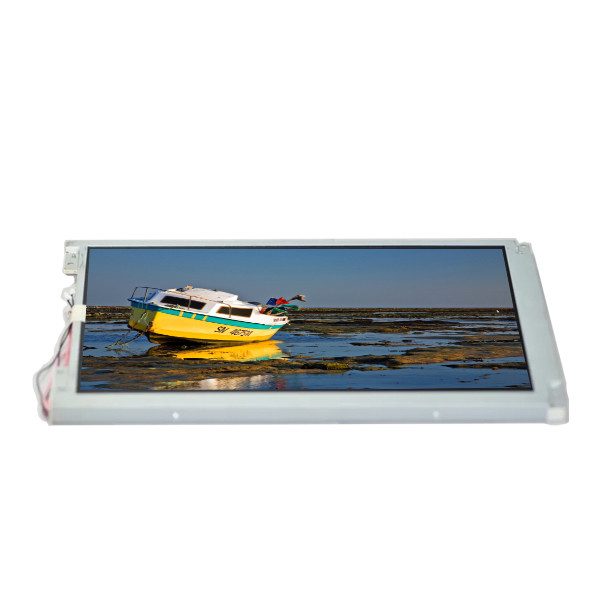

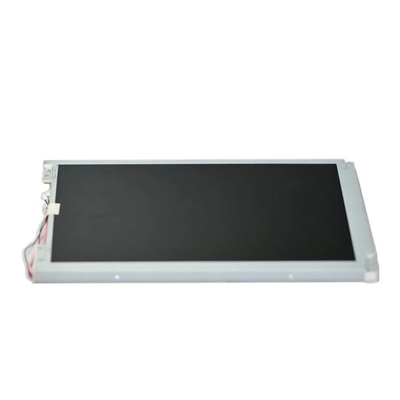

LTA133C390F 13.3 inch 262K lcd display panel LCD Module
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTA133C390F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTA133C390F | Diagonal Size: | 13.3" |
---|---|---|---|
Resolution: | 1280(RGB)×800, WXGA 113PPI | Active Area: | 286.08(W)×178.8(H) Mm |
Pixel Format: | RGB Vertical Stripe | Support Color: | 262K |
Work Mode: | TN, Normally White, Transmissive | Backlight: | 2 PcsCCFL |
Application: | Industrial |
Product Description
LTA133C390F 13.3 inch 262K lcd display panel LCD Module
LTA133C390F LCD Panel Product details :
Brand | Toshiba Mobile Display |
Model P/N | LTA133C390F |
Diagonal Size | 13.3" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 1280(RGB)×800, WXGA 113PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 286.08(W)×178.8(H) mm |
Bezel Opening | - |
Outline(mm) | 325 × 203 (H×V×D) |
Treatment | - |
Luminance | 350 cd/m² (Typ.) |
Contrast Ratio | 400 : 1 (Typ.) (TM) |
Viewing Angle | 55/55/50/50 (Typ.)(CR≥10) |
Response | 15/35 (Typ.)(Tr/Td) ms |
Good View at | - |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K |
Backlight | 2 pcsCCFL |
Mass | 395g (Typ.) |
Used for | Industrial |
Refresh Rate | 60Hz |
Touchscreen | - |
Signal Type | LVDS (1 ch, 6-bit) |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LTA133C390F 13.3 inch 262K lcd display panel LCD Module |
LTA133C390F LCD Panel Shipping and Package :
LTA133C390F LCD Panel FAQ :
Q: Do you accept sample orders of LTA133C390F ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LTA133C390F via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of LTA133C390F ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LTA133C390F ?
A: Of course!If you make a large order, we will give you a discount.
