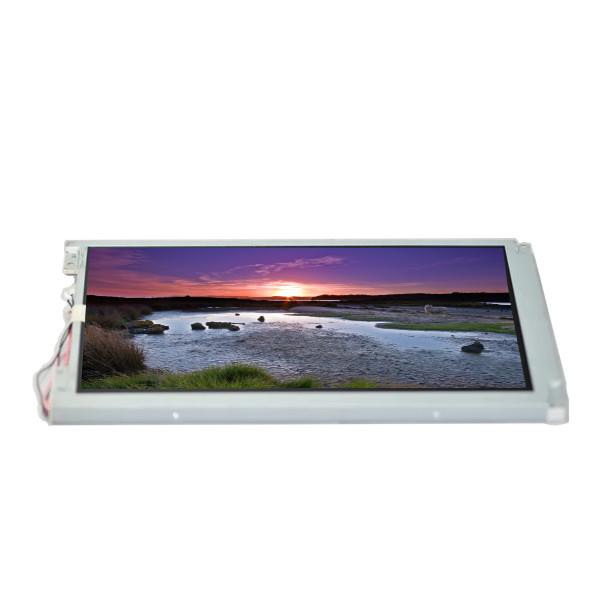

LTA121C30SF 12.1 inch 400 cd/m2 lcd display panel LCD Module
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTA121C30SF |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTA121C30SF | Diagonal Size: | 12.1" |
---|---|---|---|
Resolution: | 800(RGB)×600, SVGA 82PPI | Active Area: | 246(W)×184.5(H) Mm |
Pixel Format: | RGB Vertical Stripe | Luminance: | 400 Cd/m² (Typ.) |
Work Mode: | TN, Normally White, Transmissive | Backlight: | CCFL [2 Pcs], 60K Hours, W/O Driver |
Application: | Industrial |
Product Description
LTA121C30SF 12.1 inch 400 cd/m2 lcd display panel LCD Module
LTA121C30SF LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTA121C30SF |
Diagonal Size | 12.1" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 82PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 246(W)×184.5(H) mm |
Bezel Opening | 249.0(W)×187.5(H) mm |
Outline Dim. | 278.3(W)×209(H)×11.2(D) mm |
Treatment | - |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) |
View Direction | - |
Response Time | 8/17 (Typ.)(Tr/Td) |
Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) |
Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K |
Light Source | CCFL [2 pcs], 60K hours, W/O Driver |
Weight | 680g (Typ.) |
Designed For | Industrial |
Frame Rate | - |
Touch Panel | Without |
Interface Type | Parallel RGB (1 ch, 6-bit), 32 pinsConnector |
Power Supply | 3.3V (Typ.)(VDD) |
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
LTA121C30SF 12.1 inch 400 cd/m2 lcd display panel LCD Module |
LTA121C30SF LCD Panel Shipping and Package :
LTA121C30SF LCD Panel FAQ :
Q: Do you accept sample orders of LTA121C30SF ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LTA121C30SF via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of LTA121C30SF ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LTA121C30SF ?
A: Of course!If you make a large order, we will give you a discount.
