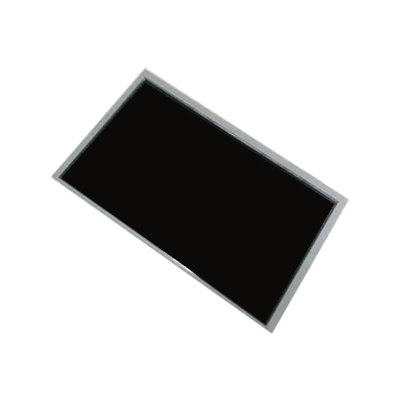

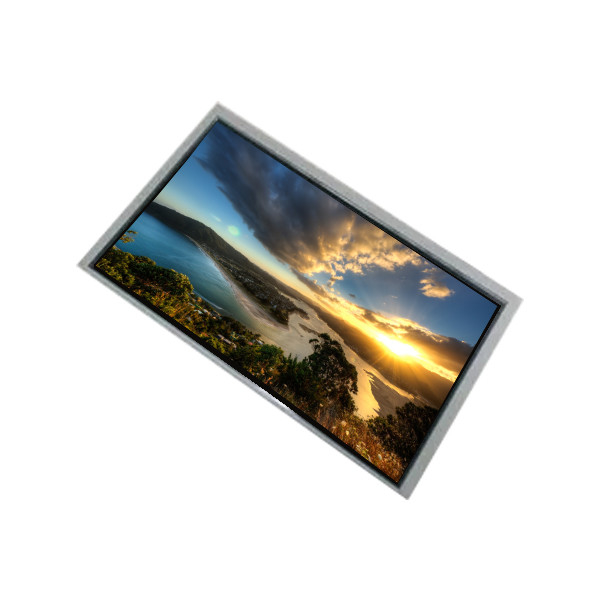

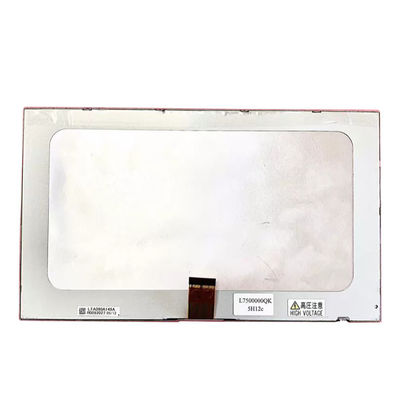

LTA090A149A 9.0 480*234 inch lcd display panel LCD Module
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTA090A149A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTA090A149A | Diagonal Size: | 9.0" |
---|---|---|---|
Resolution: | 480(RGB)×234 59PPI | Active Area: | 198(W)×111.735(H) Mm |
Pixel Format: | RGB Vertical Stripe | Luminance: | 370 Cd/m² (Typ.) |
Display Mode: | TN, Normally White, Transmissive | Display Colors: | Full Color |
Application: | Automotive Display、Digital Photo Frame、Portable DVD Player |
Product Description
LTA090A149A 9.0 480*234 inch lcd display panel LCD Module
LTA090A149A LCD Panel Product details :
Brand | Toshiba Matsushita |
Model P/N | LTA090A149A |
Diagonal Size | 9.0" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 480(RGB)×234 59PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 198(W)×111.735(H) mm |
Bezel Opening | 203.5(W)×117.2(H) mm |
Outline Size | 215(W)×126.4(H)×7.2(D) mm |
Surface | Antiglare |
Brightness | 370 cd/m² (Typ.) |
Contrast Ratio | 300:1 (Typ.) (TM) |
Viewing Angle | 60/60/30/60 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | 6 o'clock |
Response Time | 11/22 (Typ.)(Tr/Td) |
Display Colors | Full color |
Lamp Type | 1 pcsCCFL, 10K hours, Without Driver |
Frequency | 60Hz |
Touch Screen | Without |
Panel Weight | 247g (Typ.) |
Application | Automotive Display,Digital Photo Frame,Portable DVD Player |
Signal Interface | TFT Specific Analog RGB, 30 pins FPC |
Input Voltage | 3.3/5.0/17.0/-13V (Typ.)(VDD/VEE/VGON/VSS) |
Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
