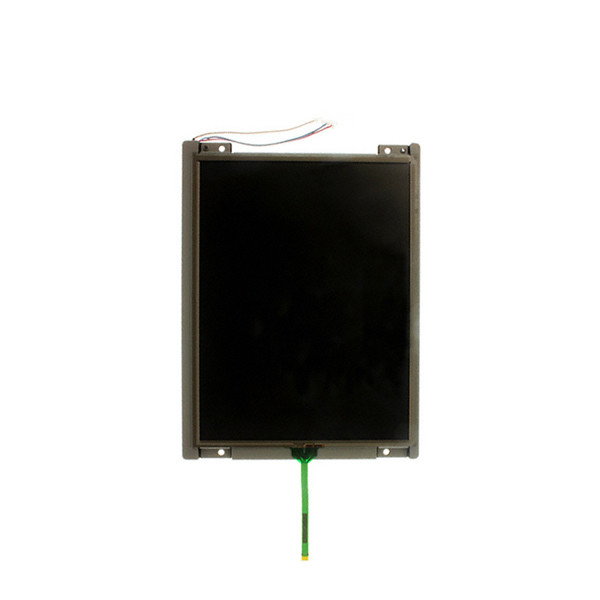

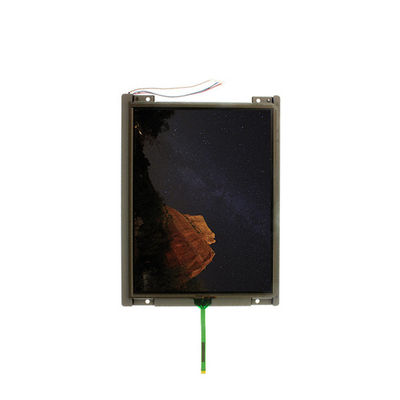

LTA084C272F 8.4 inch 262K lcd display panel LCD Module
Product Details:
Place of Origin: | China |
Brand Name: | Toshiba Matsushita |
Model Number: | LTA084C272F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | LTA084C272F | Diagonal Size: | 8.4" |
---|---|---|---|
Resolution: | 800(RGB)×600, SVGA 119PPI | Active Area: | 170.4(W)×127.8(H) Mm |
Contrast Ratio: | 450:1 (Typ.) (TM) | Viewing Angle: | 60/60/50/50 (Typ.)(CR≥10) |
Display Mode: | TN, Normally White, Transmissive | Display Colors: | 262K |
Application: | Industrial |
Product Description
LTA084C272F 8.4 inch 262K lcd display panel LCD Module
LTA084C272F LCD Panel Product details :
Brand | Toshiba Mobile Display |
Model P/N | LTA084C272F |
Diagonal Size | 8.4" |
Panel Type | LTPS TFT-LCD, LCM |
Resolution | 800(RGB)×600, SVGA 119PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 170.4(W)×127.8(H) mm |
Bezel Opening | 174.8(W)×132.2(H) mm |
Outline Size | 199.5(W)×149.5(H)×13.5(D) mm |
Surface | - |
Brightness | 320 cd/m² (Typ.) |
Contrast Ratio | 450:1 (Typ.) (TM) |
Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive |
Best View on | - |
Response Time | 8/17 (Typ.)(Tr/Td) |
Display Colors | 262K |
Lamp Type | 2 pcsCCFL, 50K hours, Without Driver |
Frequency | - |
Touch Screen | 4-wire Resistive Touch |
Panel Weight | 540g (Typ.) |
Application | Industrial |
Signal Interface | LVDS (1 ch, 6-bit), 20 pinsConnector |
Input Voltage | 3.3V (Typ.) |
Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
LTA084C272F 8.4 inch 262K lcd display panel LCD Module |
LTA084C272F LCD Panel Shipping and Package :
LTA084C272F LCD Panel FAQ :
Q: Do you accept sample orders for LTA084C272F ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of LTA084C272F ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for LTA084C272F ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of LTA084C272F at a very low value ?
A: Yes , we can . pls inform us before shipping .
