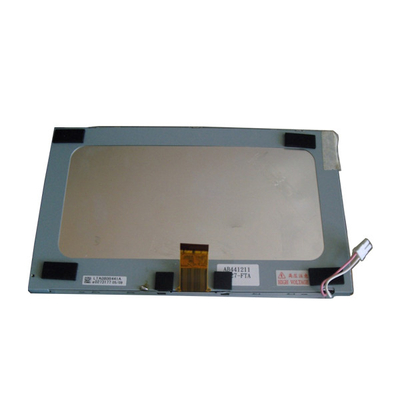

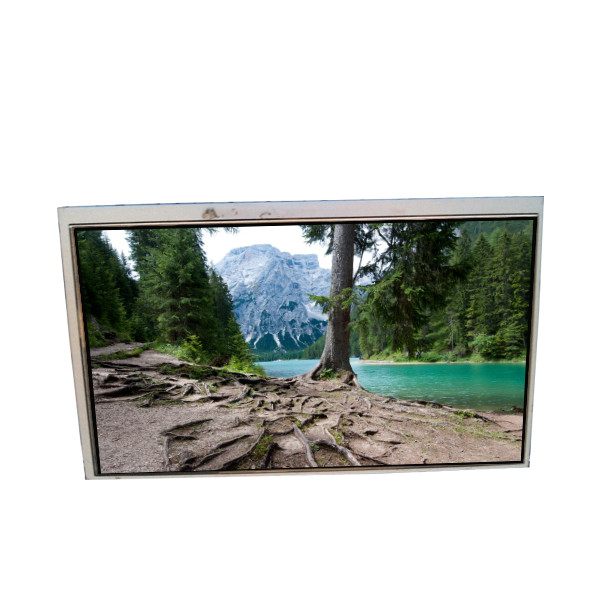

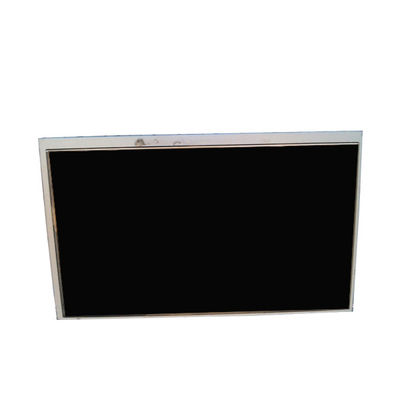

LTA080B441A 8.0 inch 350 cd/m2 LCD Screen display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTA080B441A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTA080B441A | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×234 67PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 175.68(W)×99.45(H) Mm |
| Work Mode: | TN, Normally White, Transmissive | Interface Type: | TFT Specific Analog RGB, 30 PinsFPC |
Product Description
LTA080B441A 8.0 inch 350 cd/m2 LCD Screen display Panel
LTA080B441A LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | LTA080B441A |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×234 67PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 175.68(W)×99.45(H) mm |
| Bezel Opening | 181.2(W)×105.1(H) mm |
| Outline Dim. | 187(W)×113(H)×7(D) mm |
| Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 11/22 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/30/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | Full color |
| Light Source | CCFL [1 pcs], 10K hours, W/O Driver |
| Weight | 185g (Typ.) |
| Designed For | |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | TFT Specific Analog RGB, 30 pinsFPC |
| Power Supply | 3.3/5.0/17/-13V (Typ.)(VDD/VEE/VGON/VSS) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| LTA080B441A 8.0 inch 350 cd/m2 LCD Screen display Panel | |
LTA080B441A LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LTA080B441A LCD Panel Shipping and Package :
SHIPPING Information for LTA080B441A LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LTA080B441A LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LTA080B441A LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long is the warranty of LTA080B441A ?
A: NEW Product warranty is 90 days.
Q: How to order lcd panel LTA080B441A ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
