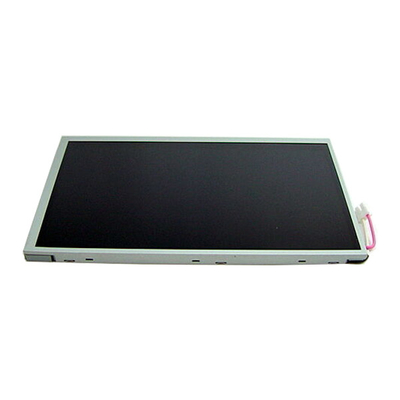

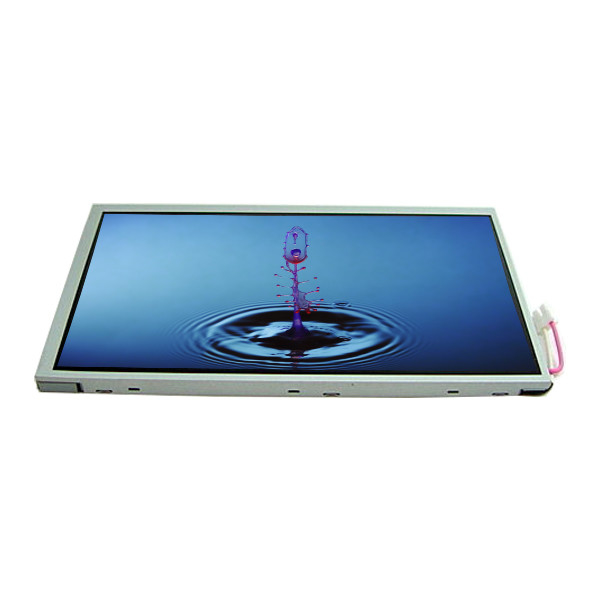

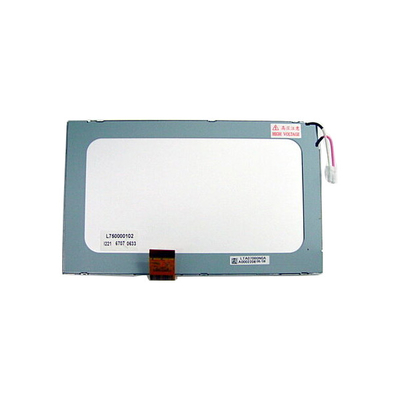

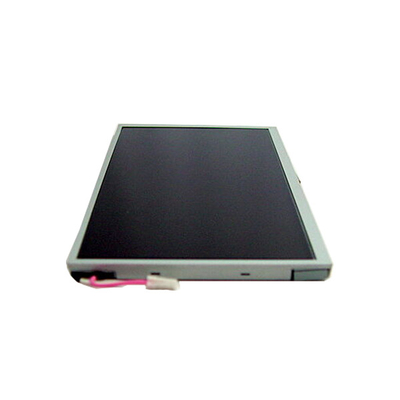

LTA070B0N0A 7.0 inch 30 pins LCD display Modules LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTA070B0N0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTA070B0N0A | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Work Mode: | TN, Normally White, Transmissive |
| Resolution: | 480(RGB)×234 76PPI | Active Area: | 154.08(W)×86.58(H) Mm |
| Signal Type: | TFT Specific Analog RGB, FPC30 Pins | Designed For: | Portable DVD Player、Digital Photo Frame |
Product Description
LTA070B0N0A 7.0 inch 30 pins LCD display Modules LCD Screen
LTA070B0N0A LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | LTA070B0N0A |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×86.58(H) mm |
| Bezel Opening | 157.9(W)×91.1(H) mm |
| Outline (mm) | 166×100×7.3 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing Angle | 60/60/30/60 (Typ.)(CR≥10) |
| Response | 11/22 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Full color |
| Backlight | 1 pcsCCFL, 20K hours, No Driver |
| Mass | 175g (Typ.) |
| Used for | Portable DVD Player,Digital Photo Frame |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | TFT Specific Analog RGB, FPC30 pins |
| Voltage Supply | 3.3/5.0/17/-13V (Typ.)(VDD/VEE/VGON/VSS) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| LTA070B0N0A 7.0 inch 30 pins LCD display Modules LCD Screen | |
LTA070B0N0A LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LTA070B0N0A LCD Panel Shipping and Package :
SHIPPING Information for LTA070B0N0A LCD Display :
We offer a variety of shipping options including ALI standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LTA070B0N0A LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LTA070B0N0A LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd LTA070B0N0A ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order LTA070B0N0A ship?
A: The order are shipped within 1-2 working days after received the payment.
