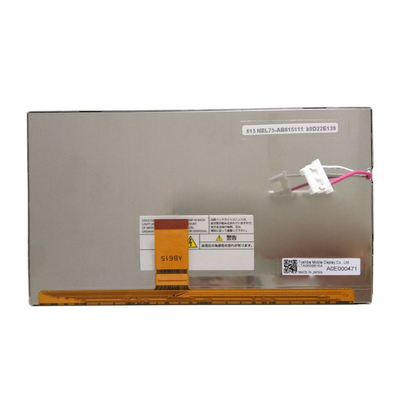

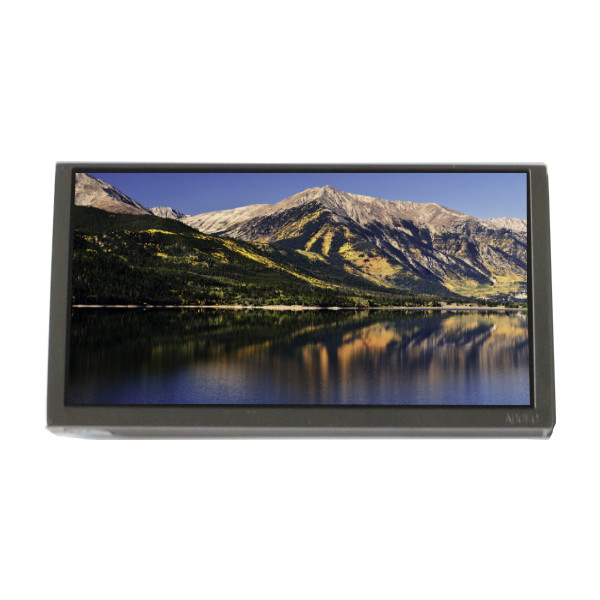

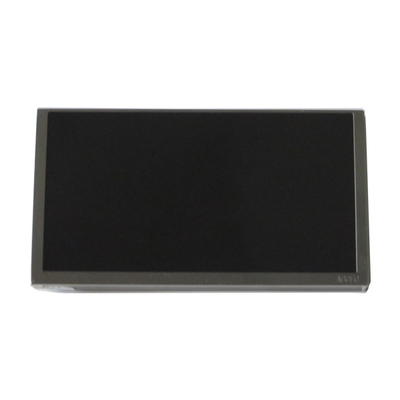

LTA065B615A 400 cd/m2 LCD display Modules LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTA065B615A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTA065B615A | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Work Mode: | TN, Normally White, Transmissive |
| Resolution: | 400(RGB)×234 71PPI | Active Area: | 143.4(W)×79.326(H) Mm |
| Frequency: | 60Hz | Designed For: | Automotive Display |
Product Description
LTA065B615A 400 cd/m2 LCD display Modules LCD Screen
LTA065B615A LCD Panel Product details :
| Brand | TOSHIBA |
| Model P/N | LTA065B615A |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 400(RGB)×234 71PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 143.4(W)×79.326(H) mm |
| Bezel Opening | - |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 60/60/30/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 11/12 (Typ.)(Tr/Td) |
| Display Colors | Full color |
| Lamp Type | 1 pcsCCFL, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 155.0g (Typ.) |
| Application | Automotive Display |
| Signal Interface | TFT Specific Analog RGB, 30 pinsFPC |
| Input Voltage | 3.3/5.0/17.0/-13.0V (Typ.)(VDD/VEE/VGH/VGL) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C |
| LTA065B615A 400 cd/m2 LCD display Modules LCD Screen | |
LTA065B615A LCD Display Note :
