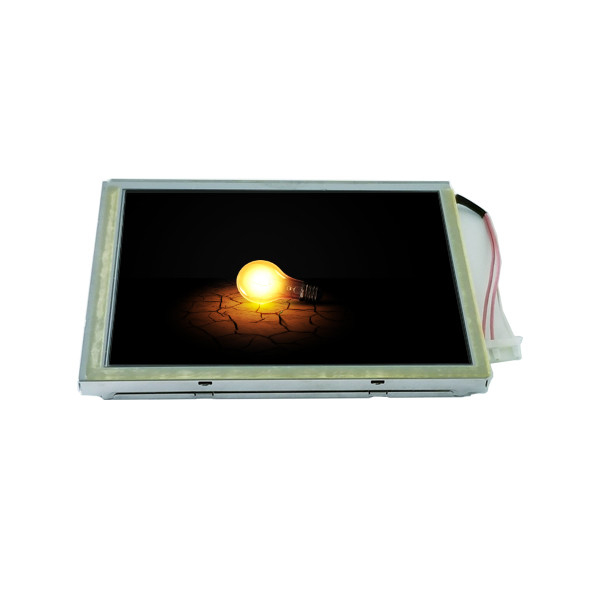

LTA065B0E0F 6.5 inch 262K LCD display Modules LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LTA065B0E0F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTA065B0E0F | Diagonal Size: | 6.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Work Mode: | TN, Normally White, Transmissive |
| Resolution: | 640(RGB)×480, VGA 122PPI | Active Area: | 132.48(W)×99.36(H) Mm |
| Support Color: | 262K | Designed For: | Industrial |
Product Description
LTA065B0E0F 6.5 inch 262K LCD display Modules LCD Screen
LTA065B0E0F LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | LTA065B0E0F |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 122PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 132.48(W)×99.36(H) mm |
| Bezel Opening | 138.34(W)×105.58(H) mm |
| Outline (mm) | 153×118×11 (H×V×D) |
| Treatment | - |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (TM) |
| Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) |
| Response | 15/25 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 2 pcsCCFL, 30K hours, No Driver |
| Mass | 250g (Typ.) |
| Used for | Industrial |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit), Connector32 pins |
| Voltage Supply | 3.3V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -20 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| LTA065B0E0F 6.5 inch 262K LCD display Modules LCD Screen | |
LTA065B0E0F LCD Display Note :
Please ensure thorough verification of the following specifications – screen size, resolution, backlight type, interface type, and compatibility with your device – before proceeding with your order. If there is any uncertainty regarding compatibility, feel free to reach out to us for clarification at no cost.
Kindly furnish us with accurate contact details to facilitate prompt delivery of your item.
Should you wish for us to offer a reduced price to mitigate tariff implications, please inform us accordingly. However, please note that any associated risks shall be borne by you.
LTA065B0E0F LCD Panel Shipping and Package :
SHIPPING Information for LTA065B0E0F LCD Display :
We offer a variety of shipping options including Alibaba standard shipping, EMS, DHL, FedEx, and more. You can select your preferred shipping method during the checkout process.
Orders will typically be dispatched within 1-3 business days following the completion of payment. However, please note that certain products may require additional processing time depending on their stock availability.
Upon shipment, each order will be assigned a unique tracking number, which will be promptly provided to you for easy monitoring of your delivery.
To ensure the safe transit of your item, we utilize secure packaging consisting of an antistatic bag, bubble bag, bubble chamber, and a sturdy hard carton suited to the item's dimensions. This packaging approach is designed to minimize the risk of damage during transportation.
Reminder for LTA065B0E0F LCD Display Purchase :
Kindly note that our listed price does not incorporate any customs taxes or fees applicable in the destination country. Whether you incur any taxes or fees upon Customs clearance at your destination hinges on the regulations enforced by the respective country.
To ensure seamless delivery, please verify and ensure the accuracy of your shipping details, including your address, postal code, phone number, and designated contact person, prior to finalizing your order. In the event you wish to have your order delivered to an alternate address, please notify us in advance and leave a message in our transaction platform to facilitate the necessary arrangements.
LTA065B0E0F LCD Panel FAQ :
Q: What happen if the lcd panel LTA065B0E0F I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
