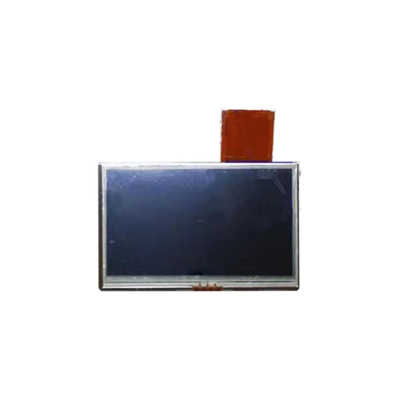

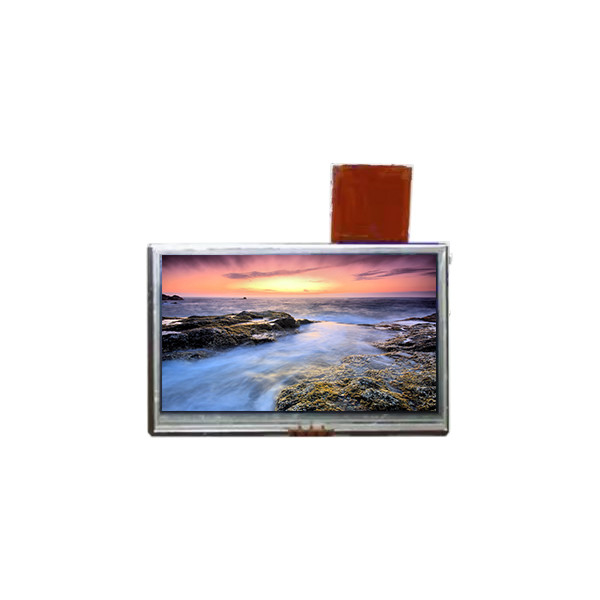

A050FW01 V3 5.0 inch 480*272 lcd portable screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A050FW01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A050FW01 V3 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×272, WQVGA 109PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 110.88(W)×62.832(H) Mm |
| Support Color: | 16.7M | Light Source: | WLED [7S2P], W/O Driver |
| Designed For: | Portable Navigation、MP3 PMP | Frame Rate: | 60Hz |
Product Description
A050FW01 V3 5.0 inch 480*272 lcd portable screen panel
A050FW01 V3 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A050FW01 V3 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×272, WQVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 110.88(W)×62.832(H) mm |
| Bezel Opening | 114.34(W)×65.43(H) mm |
| Outline Dim. | 120.7(H)×75.8(V)×3.41(D)mm |
| Treatment | - |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M |
| Light Source | WLED [7S2P], W/O Driver |
| Weight | - |
| Designed For | Portable Navigation,MP3 PMP |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit), 50 pinsFPC |
| Power Supply | 3.3V (Typ.)(VDD) |
| Environment | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -10 ~ 70 °C |
