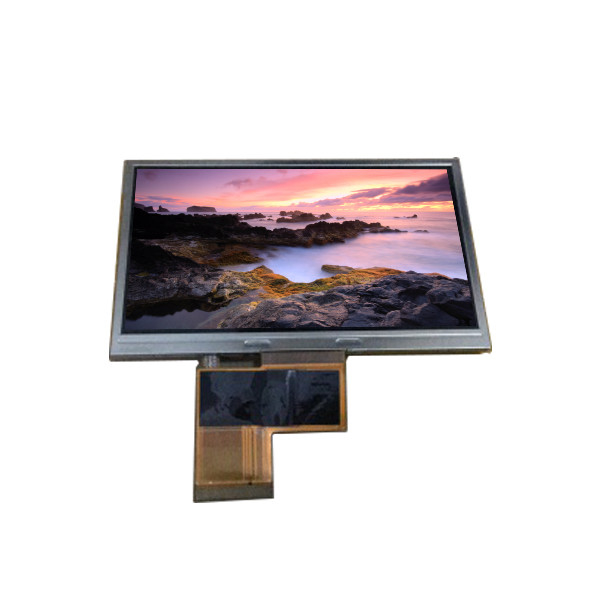

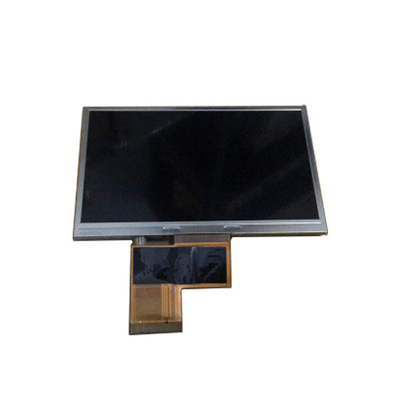

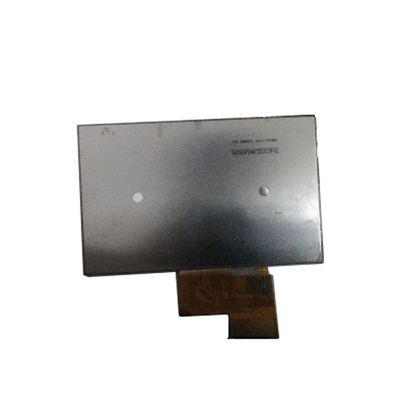

A050FTN01.0 5.0 inch 480*272 lcd panel replacement for MP3 PMP
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A050FTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A050FTN01.0 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×272, WQVGA 109PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 110.88(W)×62.832(H) Mm |
| Color Depth: | 16.7M 50%NTSC | Backlight: | 6S2PWLED, 10K Hours, No Driver |
| Used For: | Portable Navigation、MP3 PMP | Refresh Rate: | 60Hz |
Product Description
A050FTN01.0 5.0 inch 480*272 lcd panel replacement for MP3 PMP
A050FTN01.0 LCD Panel Product details :
| Brand | AUO |
| Model P/N | A050FTN01.0 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×272, WQVGA 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 110.88(W)×62.832(H) mm |
| Bezel Opening | 114.7(W)×66.03(H) mm |
| Outline (mm) | 120.7×75.8×3.25 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/40/60 (Typ.)(CR≥10) |
| Response | 7/23 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50%NTSC |
| Backlight | 6S2PWLED, 10K hours, No Driver |
| Mass | 60.0g (Typ.) |
| Used for | Portable Navigation,MP3 PMP |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit), FPC45 pins |
| Voltage Supply | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: 0 ~ 70 °C |
