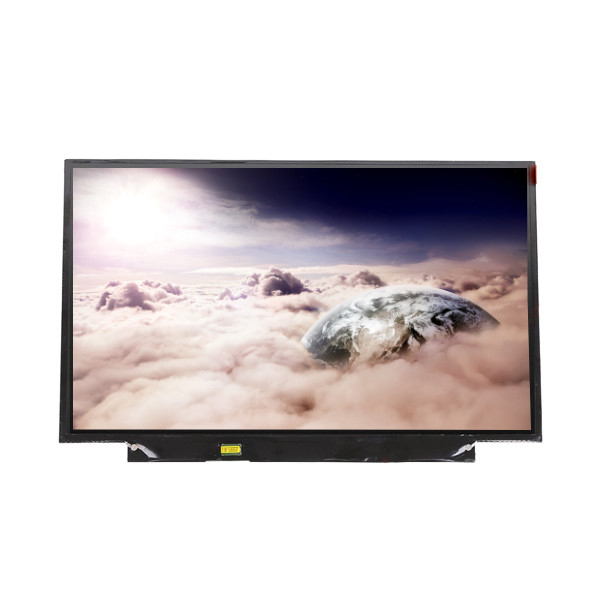

LTLT133EE09100 13.3 inch 262K 48%NTSC LCD Screen panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Toshiba Matsushita |
| Model Number: | LT133EE09100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LT133EE09100 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 118PPI | Pixel Format: | RGB Vertical Stripe |
| Active Area: | 293.42(W)×164.97(H) Mm | Support Color: | 262K 48%NTSC |
| Backlight: | WLED, With LED Driver | Application: | Laptop |
| Signal Interface: | LVDS (1 Ch, 6-bit), 40 PinsConnector | Display Mode: | TN, Normally White, Transmissive |
Product Description
LTLT133EE09100 13.3 inch 262K 48%NTSC LCD Screen panel
LT133EE09100 LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | LT133EE09100 9 Compatible |
| Diagonal Size | 13.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 118PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 293.42(W)×164.97(H) mm |
| Bezel Opening | 295.4(W)×167.0(H) mm |
| Outline Dim. | 314.1(H)×188.8(V)×3.6(D)mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 20/40/40/40 (Min.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 48%NTSC |
| Light Source | WLED, With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LTLT133EE09100 13.3 inch 262K 48%NTSC LCD Screen panel | |
Important Note Regarding LT133EE09100 LCD Screen:
The part numbers mentioned in the titles serve solely as a reference to aid you in locating a compatible screen for your existing model number. Please be aware that receiving the exact part number as listed in the title is not guaranteed. Instead, we will dispatch a 100% compatible item that matches the specifications of the original part number. It's common for manufacturers to alter part numbers over time, rendering certain numbers obsolete. Furthermore, the images included in the listing are intended for illustrative purposes only, showcasing the connector's position and the fixing points.
LT133EE09100 LCD Panel Shipping and Package :
Shipping Details for LT133EE09100 LCD Screen:
Rest assured, your item is in excellent condition and will be carefully prepared for shipping.
All orders will be dispatched to the buyer's specified shipping address as listed during the purchase process. If you wish to have your order delivered to an alternative address, kindly ensure that you update your shipping details accordingly before completing your transaction.
Please note that the seller reserves the right to opt for a shipping company other than the one initially indicated in the listing, at their discretion. Common carriers utilized include USPS, UPS, and FedEx. Should you prefer to use your own shipping label, please feel free to get in touch with us.
Upon shipment, all packages will be provided with a tracking number for your convenience. We extend our shipping services internationally; however, please be advised that the buyer assumes responsibility for all associated international shipping and handling fees.
While we prioritize shipping the model specified in the title, in the event that this model is unavailable, we will promptly dispatch its compatible universal counterpart to fulfill your order.
LT133EE09100 LCD Panel FAQ :
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: Do you accept the LT133EE09100 sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
